This type of automatic stator coil winding machine is suitable for multi-connected and multi layer winding. It can wind 1-8coils simultaneously at a time.

(1) Machine function and characteristic

This automatic stator  winding machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect.There are two alternate sipindles to facilitate higher output. It applies to all kinds of micro motors.

(2) Main Technical parameter:

• Swing diameter：≤350mm

• Effective length of tooling：≤400mm

• Wire head：3 pcs

• Wire diameter：0.2~1.5mm

• Max RPM：1600RPM

• Power supply：220V/50/60Hz 1.5Kw

• Air pressure：0.4MPa

• Weight：250Kg

• Dimension：1300mm*1260mm*1280mm

(3) Application

RX2-250 Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding such as alternator, servo motor and three phase motor.

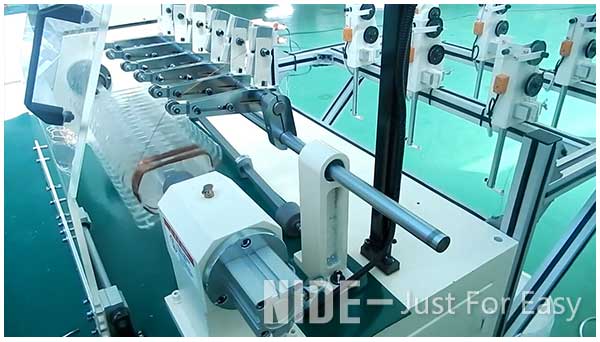

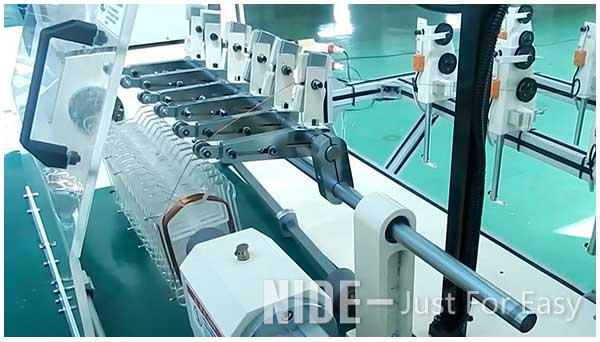

The working station of this coil winding machine

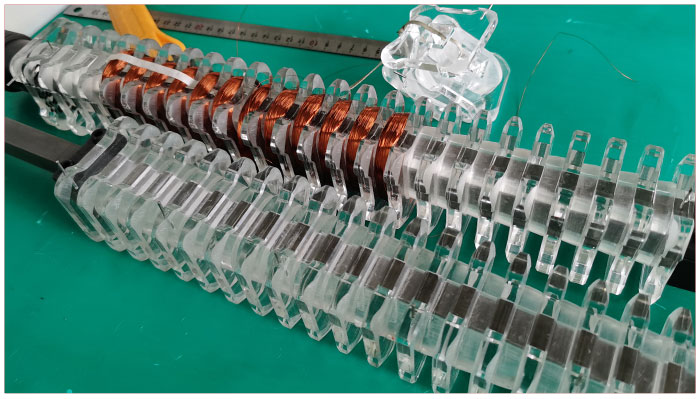

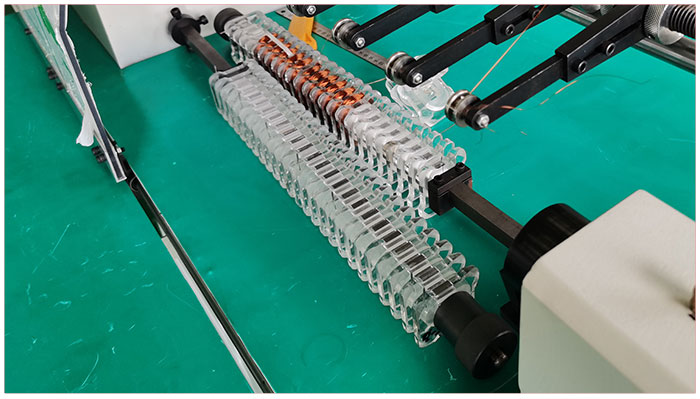

The stator coil winding machine picture

 The Multistrand Type Automatic Coil Winding Machine youtube video

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
