Custom Motor Insulation Slot Wedge - Armature Accessories

The insulating slot wedge is a necessary part of the motor winding process. Its main function is to fix the coil embedded in the iron core to prevent its displacement in the slot, including preventing the coil from popping out of the slot. There are two types of slot wedges that are commonly used, one is insulating slot wedges that play an insulating role, and the other is magnetic slot wedges commonly used in high-efficiency and high-voltage motors.

We supply a variety of motor slot wedges, 3240 epoxy board slot wedge, guide slot wedge, Magnetic slot wedge, silicone slot wedge, semiconductor slot wedge, 4330 molded slot wedge, Diphenyl ether slot wedge, can meet the needs of various types and insulation grade motors.

Motor Slot Wedge Parameters

Motor Slot Wedge Features

The motor slot wedge has excellent mechanical strength, heat resistance and chemical corrosion resistance, and is suitable for all kinds of motors or transformers with an insulation class of F/H.

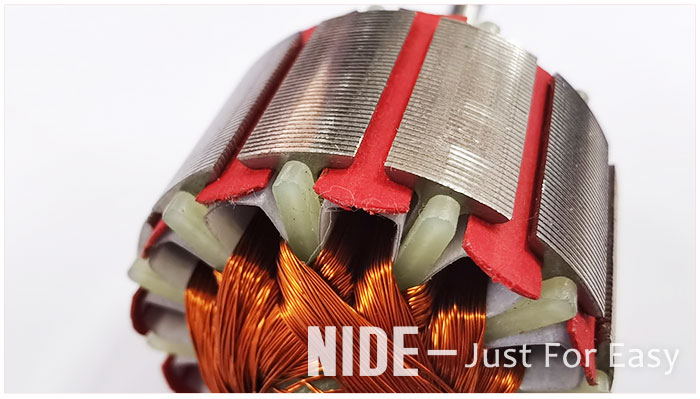

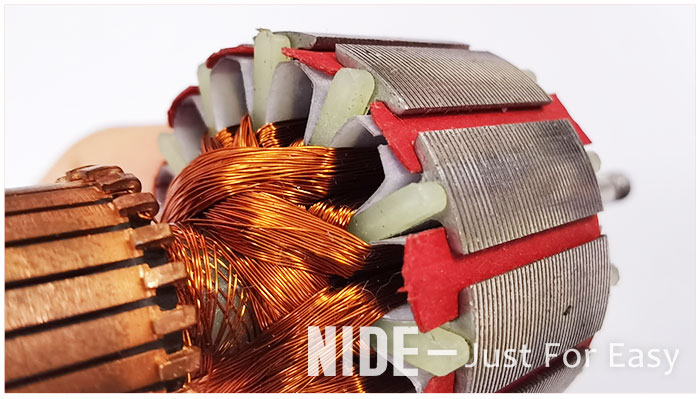

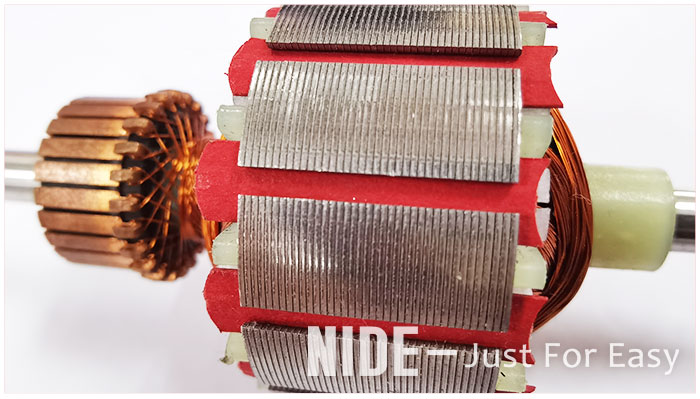

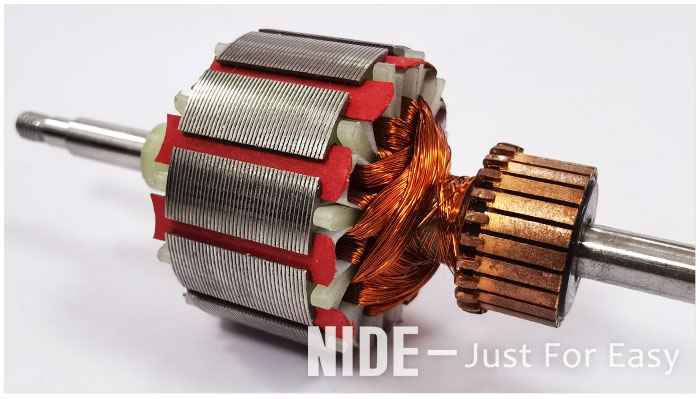

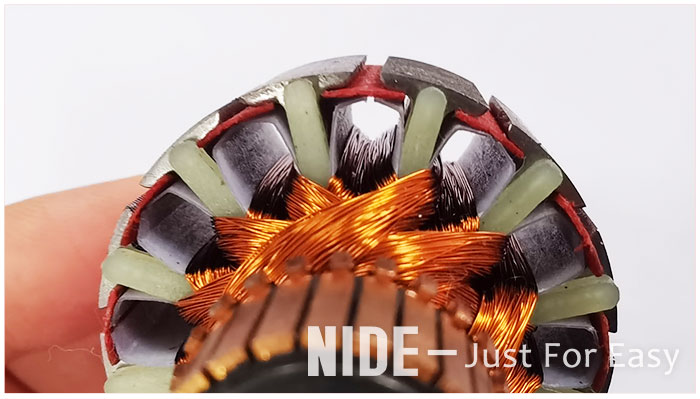

Motor Slot Wedge Picture

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
