Auto female crimp terminal for electrical wire connectors
Model number:NDPJ-CT-0001
Introduction:Female crimp terminals are used for the connector system.
- Specification
Auto female crimp terminal for electrical wire connectors
Female crimp terminals are used for the connector system. Made of high quality brass material, strong and durable.These female crimp terminals are matte sealed, have a low insertion forceand.
High elasticity, safe and reliable performance, simple and convenient to use.
Professionally manufactured: Each crimp terminal is tested in a single piece of fine workmanship to ensure perfect performance and reliability.
Easy to install and use:
Crimp Terminal Parameter
Type Crimp Terminal Pitch 4.50mm pitch Material Phosphor Bronze / Brass Tin /Copper Brass Surface Tin Coating Wire range 0.1-4.0mm2 Gender Female Color Customized Withstand voltage 1500V AC/min Connector type Disconnectable Crimp type, Wire to Wire Temperature range -25℃~85℃ Insulation resistance ≥1000MΩ min Contact Resistance Initial Value≤0.01Ω; After Environment Tests ≤0.02Ω Voltage Rating 300V AC,DC Current rating 10A AC,DC Service ODM, OEM Crimp Terminal Application
The Female crimp terminal is widely used in the communication line with current equipment such as low voltage, communication equipment, lighting machinery, ship and other fields. Suitable for auto and home appliance cable wire lup.

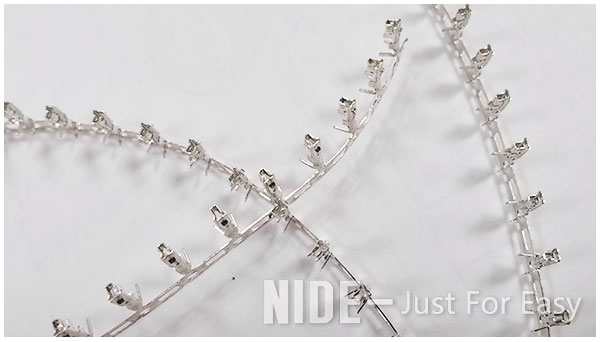

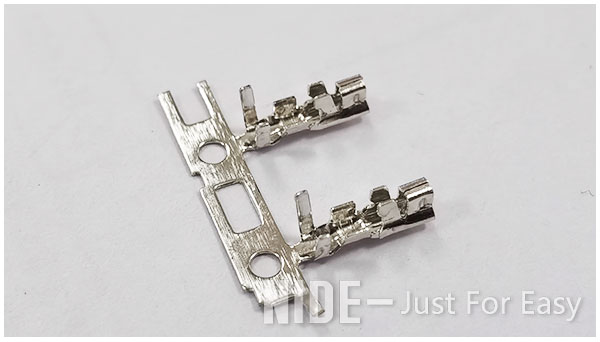

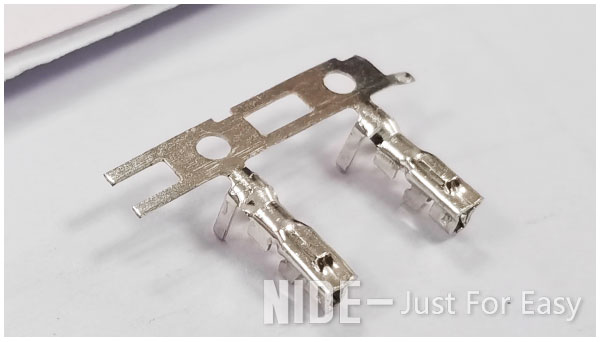

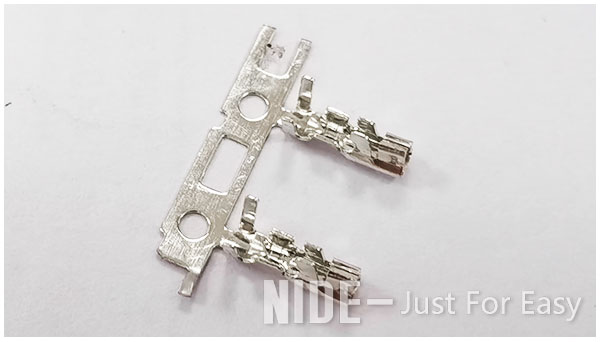

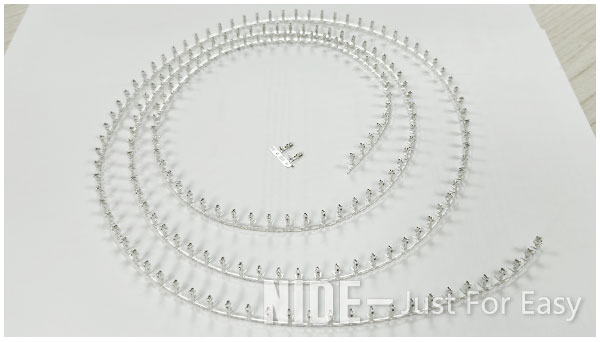

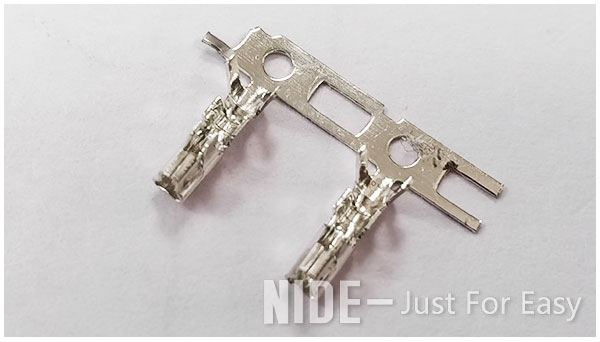

Crimp Terminal Picture
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
