Customized DMD Insulating Paper Motor Slot Insulation
Model number:NDPJ-JYZ-29
Introduction:The NM Insulation Paper is suitable for electric motor coil winding.
- Specification
Customized 6641 DMD Insulating Paper Motor Slot Insulation Paper
6641 DMD Insulating Paper Features and uses:
The 6641 DMD composite paper insulation material is made of polyester film and polyester fiber composite material is a composite material made of polyester film coated with F-grade adhesive on both sides and polyester fiber non-woven fabric on both sides. The heat resistance grade is F, with good dielectric properties and high mechanical strength. It is suitable for slot and inter-turn insulation in Y series and J02 series motors and electrical appliances.
6641 DMD Insulating Paper Parameter

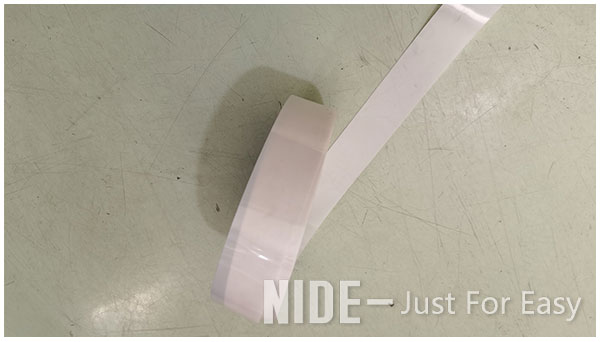

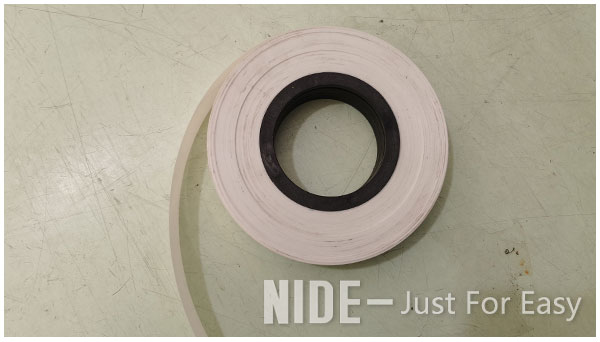

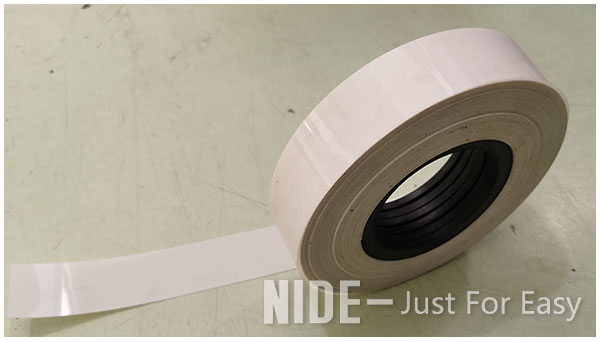

Product name 6641 DMD insulating paper motor slot insulation paper Customized: Yes Thickness: 0.1-0.35 (mm) Color: white red blue pink Size: 1000 (mm) Packing Instructions: Roll Grade: F Features: Good heat resistance, slightly inferior to NMN in dielectric strength and tensile strength 6641 DMD Insulating Paper Picture
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
