6642 Polyester Film Aramid Paper Soft Composite (AMA)
Model number:NDPJ-JYZ-6642E
Introduction:
- Specification
6642 Polyester Film Aramid Paper Soft Composite (AMA)
6642 polyester thin composite material is a three-layer insulating paper made of polyester film coated with adhesive and bonded to two-sided aramid paper, using H-grade glue.
6642 polyester thin insulating paper combines the excellent high temperature resistance of 220℃, good mechanical toughness and good dielectric strength of polyester film of aramid paper. Widely used in electrical equipment, suitable for slot insulation and inter-turn gasket insulation of motors.
6642 polyester film insulation paper parameters
Product name: 6642 polyester film aramid paper soft composite insulation paper AMA Nominal thickness: 015-0.4MM Heat resistance class: F/H class Product features: It has excellent insulating properties, electrical properties, mechanical strength and high heat resistance, and is an ideal product to replace NMN composite materials. Product use: suitable for slot insulation, interlayer insulation, turn-to-turn insulation, phase-to-phase insulation and gasket insulation of motors, transformers and electrical appliances. 6642 Ester Film Insulation Paper Storage
Store in a dry and clean room with room temperature below 40°C, away from fire, heating and direct sunlight. The storage period is 12 months. If the storage period is exceeded, it can still be used according to the technical standards.

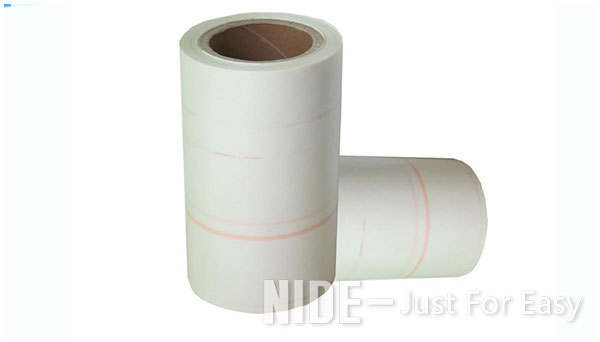

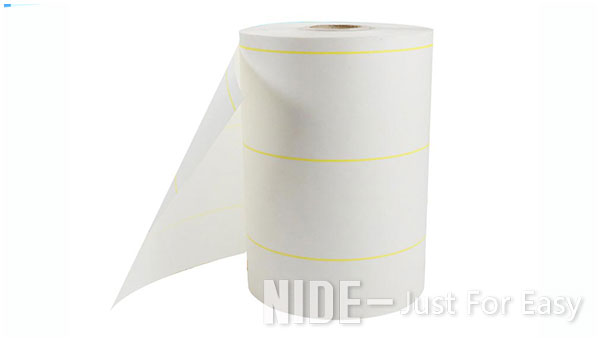

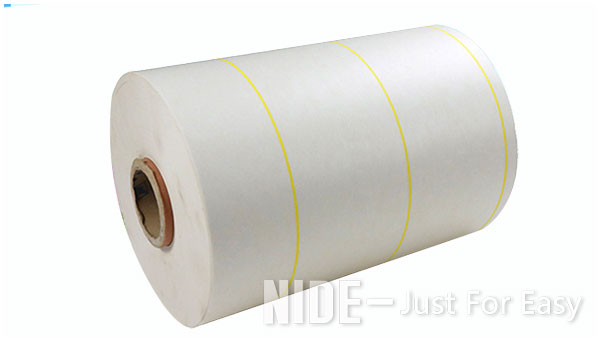

6642 polyester film insulation paper picture
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
