NM Insulation Paper 0.25x48mm
Model number:NDPJ-JYZ-28
Introduction:The NM Insulation Paper is suitable for electric motor coil winding.
- Specification
NM Insulation Paper 0.25x48mm
NM insulating paper is a kind of soft composite material, which consists of two layers of insulating paper made of polyester film coated with adhesive and bonded with calendered polyamide aromatic fiber paper on both sides.
It combines the excellent high temperature resistance of 220 ℃ of DuPont paper, good mechanical toughness and good dielectric strength of polyester film.
It is widely used in electrical equipment, and is suitable for slot insulation, turn-to-turn insulation and gasket insulation of F-class motors.
NM Insulation Paper Performance:

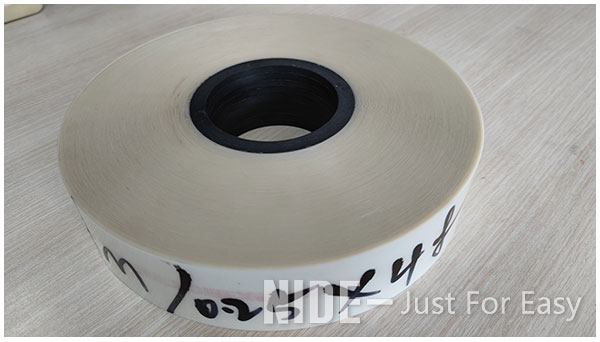

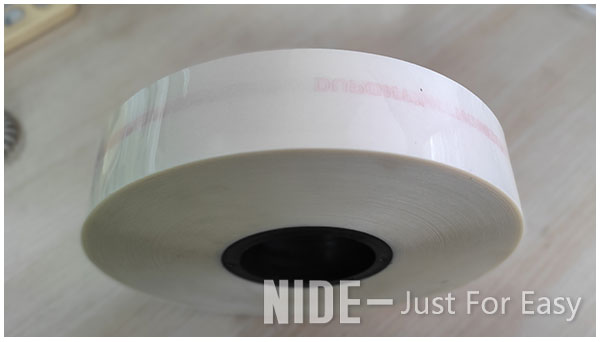

Product name NM Insulation Paper 0.25x48mm Model 6640 temperature resistance 180 (℃) colour White thickness 0.08-0.25 (mm) width 10-910 (mm) certified product UL SGS Scope of application : Transformer Motor ,electric motor, NM Insulation Paper Picture:
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
