608ZZ ball bearing stainless steel mixer motor bearing spare parts

608ZZ bearing adopts double-sided stainless steel stamping dust cover, suitable for floor fan, shaking head fan, food mixer motor.

608ZZ deep groove ball bearing parameters

Type: 608ZZ

Series: Deep Groove Ball Bearings

Material: Stainless steel

Inner diameter: 8 mm

Outer diameter: 22 mm

Thickness: 7 mm

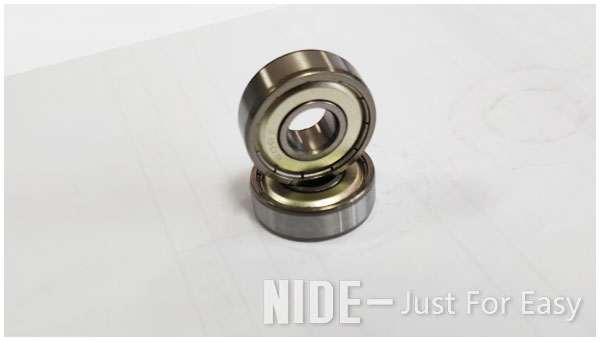

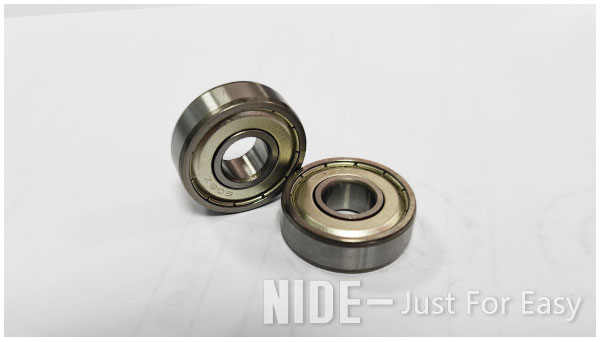

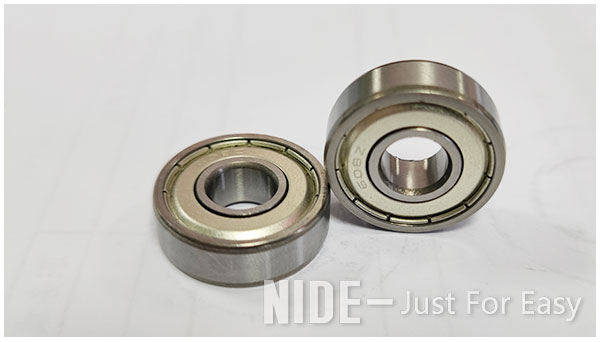

608ZZ deep groove ball bearing show

Features of deep groove ball bearings

Deep groove ball bearings are widely used and the most representative rolling bearings. Radial load and bidirectional axial load are acceptable.

The bearing is suitable for high-speed rotation and places requiring low noise and low vibration. The sealed bearing with steel plate dust cover or rubber sealing ring is pre-filled with an appropriate amount of grease, and the outer ring has a snap ring or flange. Axial positioning, yet facilitates the device within the housing. The maximum load type bearing has the same dimensions as the standard bearing, but has a filling groove in the inner and outer rings, which increases the number of balls and increases the rated load.

We make various kinds of ball bearing as per customer’s drawing and samples. Our ball bearing is widely applied the different industrials.

Nide pays high attention on production detail and process to guarantee the insulation material quality.

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
