Fully Automatic Hairpin Stator Production Line for Flat Wire EV Motors

Model number:ND-HMPX-2
Introduction:The Hairpin Stator Production Line for Flat Wire EV Motors is a fully automated and intelligent solution for manufacturing hairpin stators used in new energy vehicle (NEV) drive motors. Designed to support the production of 2 to 10-layer flat wire stators, this advanced line features a high degree of automation, MES integration, digital traceability, and modular flexibility. With a cycle time of 100 seconds and a compact footprint, it significantly boosts production efficiency, product quality, and factory intelligence—helping EV motor manufacturers stay competitive in the fast-growing electric mobility industry.

Product video

  • Specification
  • Hairpin Stator Production Line for Flat

    Wire EV Motors

    This fully automated production line is tailored for the manufacturing of hairpin stators

    in flat wire drive motors used in electric vehicles (EVs) and new energy vehicles (NEVs)

    It supports multi-layer stator production (2–10 layers) and meets the demands of high-speed,

     high-efficiency, and high-precision motor manufacturing.

    Key Features:

    • High Automation & Intelligence: Complete line automation including paper insertion, coil

      forming, insertion, end twisting, welding, testing, and coating processes.

    • MES Integration: Enables production data traceability, quality monitoring, and remote control.

    • Flexible Configuration: Adaptable for different motor stator specifications and production volumes.

    • Compact Footprint: Efficient use of factory space, total layout area only 30m x 12m.

    • High Yield & Consistency: Cycle time of 100 seconds per stator ensures stable high-volume output.

    Technical Specifications:

    • Production Cycle Time (C/T): 100 seconds per stator

    • Production Capacity: Suitable for 2 to 10-layer hairpin stators

    • Line Dimensions: 30 meters × 12 meters

    • System: Fully integrated with MES (Manufacturing Execution System)

    New Energy Vehicle (EV motor) hairpin stator manufacturing..jpg

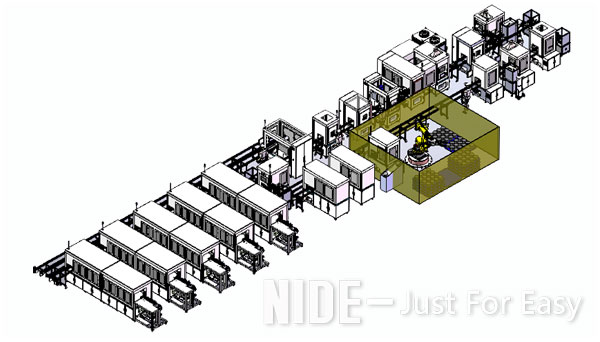

    Process Flow Overview:

    1. Insulation Paper Inserting

    2. Hairpin Forming

    3. Hairpin Coil Inserting

    4. End Twisting (Twist Forming)

    5. Flat Cutting of Hairpin Ends

    6. Hairpin Laser Welding

    7. Busbar Welding

    8. Coil Electrical Testing

    9. Varnish Coating / Trickling

    10. Comprehensive Performance Testing

    Full Equipment Configuration:

    • B-type Paper Inserting Machine

    • Hi-pot & End Expanding Machine for Insulation Paper

    • Hairpin Forming Machine

    • Hairpin Inserting Machine

    • End Expanding Machine

    • Hairpin End Twisting Machine

    • Perpendicularity Correction and Measurement Machine

    • Hairpin Flat Cutting Machine

    • Hairpin Laser Welding Station

    • Coil Testing Equipment

    • Vacuum Trickling Machine

    • Busbar Welding Machine

    • Laser Marking Machine

    • Final Stator Testing Machine (with PDIV testing)

    Hairpin Motor Technology-Stator Production Line.jpg

    stator manufacuturing machine
