1.2UF Electric Fan Capacitor / CBB61 Polypropylene Film Capacitor
Model number:NDPJ-CBB61-1
Introduction:The CBB61 capacitors are mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.
- Specification
1.2UF Electric Fan Capacitor CBB61 AC Motor Capacitor 450V
CBB61 capacitor is a kind of AC motor running & starting capacitor. Its shape is generally rectangular. It is characterized by large capacity, low loss, strong moisture resistance, good reliability and excellent electrical performance. The ambient temperature suitable for use is -40℃~+85℃. Our company can develop, design and produce products that meet various special needs according to the different needs of customers.
Capacitor Application :
CBB61 capacitors are mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.
Capacitor Feature:
1. Encapsulated in plastic shell, with good appearance consistency.
2. Small loss at high frequency, suitable for larger current.
3. High insulation resistance, good self-healing and long life.
Capacitor Structure:
1. The capacitor core is wound by metallized organic film.
2. Plastic shell, flame retardant epoxy resin potting, single capacitor core or multi-capacitor core can be installed in one shell.
3. The installation components include plastic ears and iron ears.
4. The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.

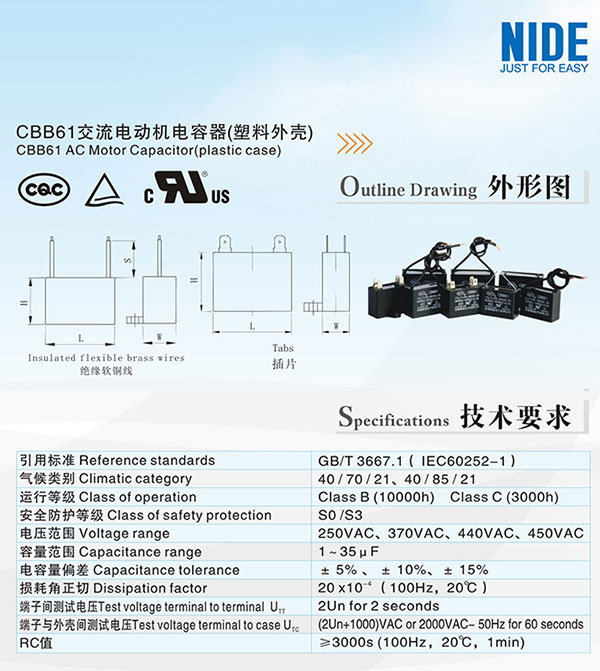

Capacitor Parameter

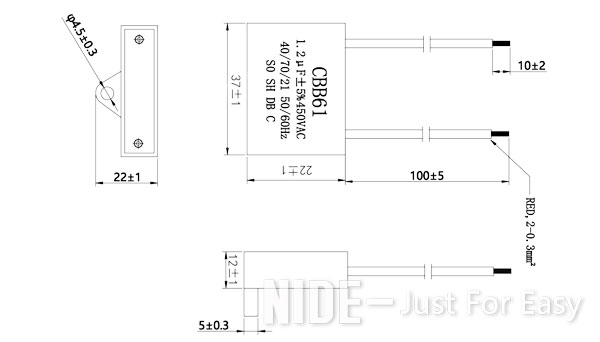

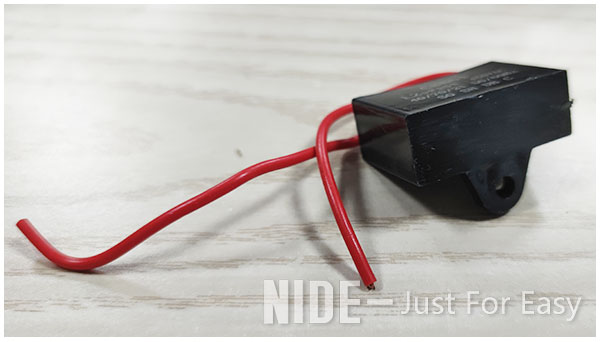

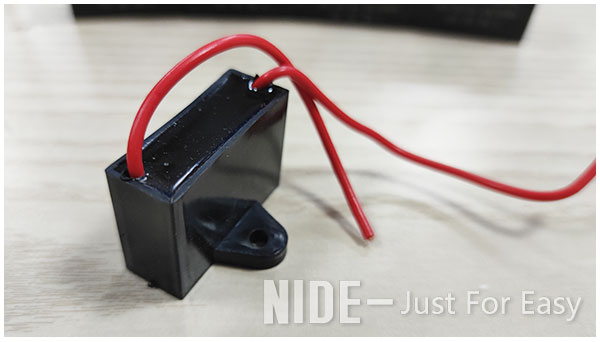

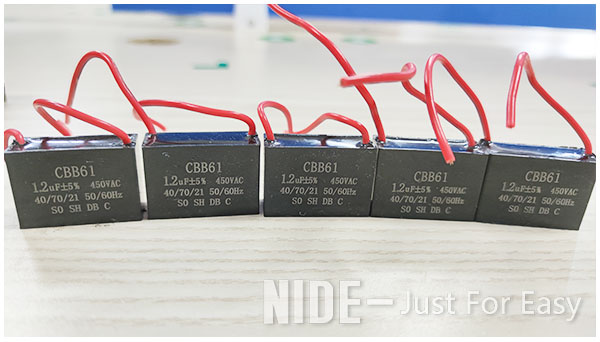

Product Name: AC Motor Capacitor Model: CBB61 Material: Metal Plastic; Voltage: 250VAC、370VAC、440VAC、450VAC 50/60Hz Max.TEMP: 70°C Size: 38X27X16MM Reference standards: GB/T 3667.1 ( IEC60252-1 ) Climatic category： 40/ 70/21、40/85/21 Class of operation Class B (10000h) Class C (3000h) Class of safety protection S0 /S3 Capacitance range 1~35μ F Capacitance tolerance 土5%、土10%、土15% Dissipation factor 20x10^(-4) ( 100Hz, 20°C ) Test voltage terminalto terminal UTT 2Un for 2 seconds Test voltage terminal to caseUTC (2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds RC ≥3000s (100Hz, 20°C，1min) Capacitor Picture:
Capacitor Customized:
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
