CBB61 Air Conditioner Ceiling Fan Capacitor 3UF 450V
Model number:NDPJ-CBB61-3
Introduction:The Conditioner is suitable for electric fans, range hoods, air-conditioning fans, and bread machines.
- Specification
CBB61 Air Conditioner Ceiling Fan Capacitor 3UF 450V
CBB61 starting capacitor is suitable for the starting and running of a single-phase motor with a frequency of 50HZ/60HZ AC power supply, and can also play a role in speed regulation of the motor. The CBB61 capacitor is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.
Capacitor Parameter

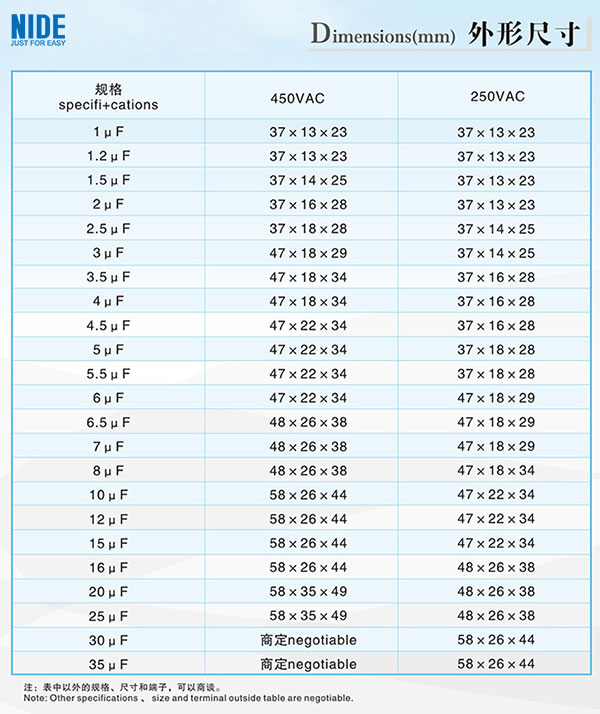

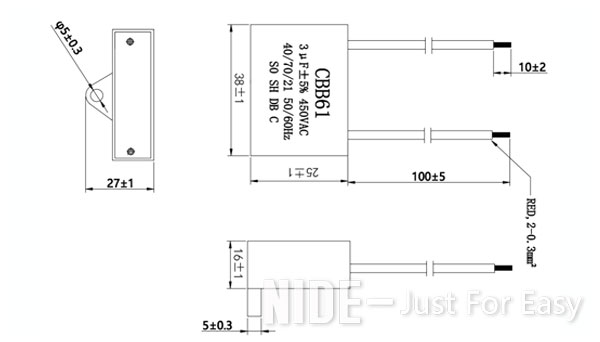

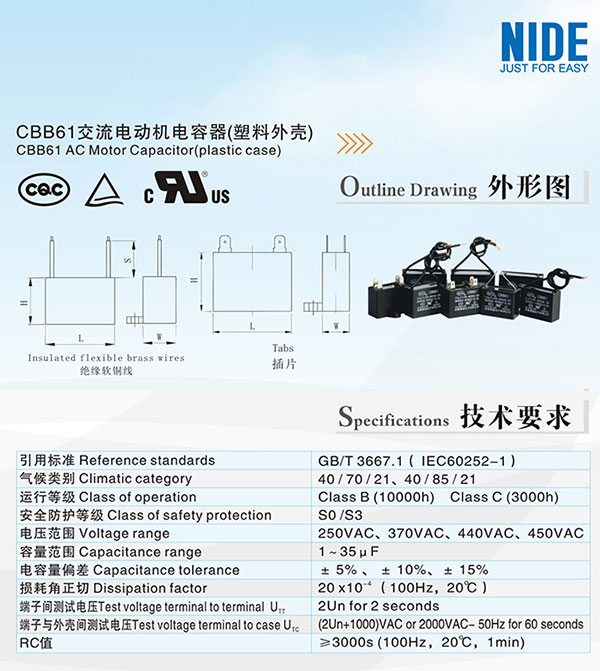

Product Name: AC Motor Capacitor Model: CBB61 Material: Metal Plastic; Voltage: 250VAC、370VAC、440VAC、450VAC 50/60Hz Max.TEMP: 70°C Size: 38X27X16MM Reference standards: GB/T 3667.1 ( IEC60252-1 ) Climatic category： 40/ 70/21、40/85/21 Class of operation Class B (10000h) Class C (3000h) Class of safety protection S0 /S3 Capacitance range 1~35μ F Capacitance tolerance 土5%、土10%、土15% Dissipation factor 20x10^(-4) ( 100Hz, 20°C ) Test voltage terminalto terminal UTT 2Un for 2 seconds Test voltage terminal to caseUTC (2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds RC ≥3000s (100Hz, 20°C，1min) Capacitor Feature:
Self-healing
High stability
reliability

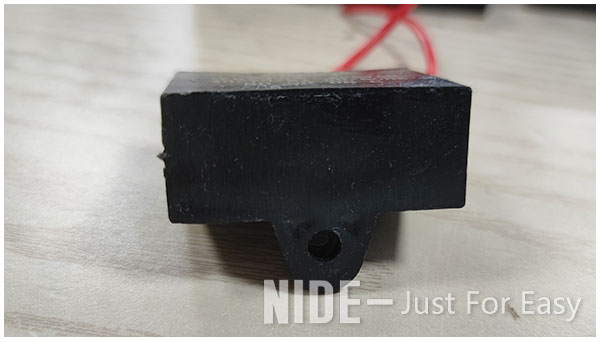

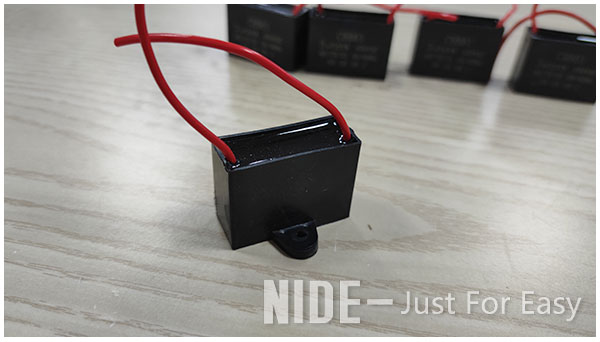

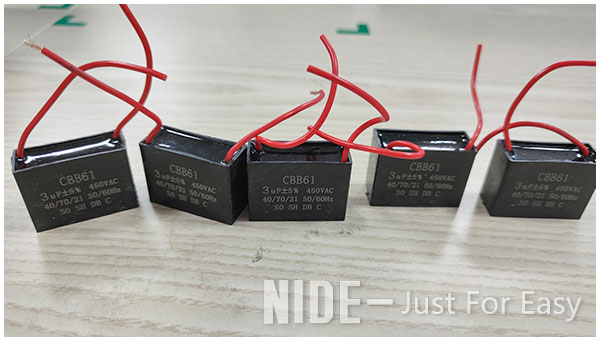

Capacitor Picture:
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
