Automatic stator coil winding machine for air conditioner motor

The stator coil winding machines is universal winding machine for manufacturing insertion coils for three-phase motor stator coils. It is a vertical single-head double-station automatic winding machine.

NIDE Group provides a complete motor manufacturing production line, which is used in induction motor manufacturing, brushless motor manufacturing, new energy motor manufacturing, synchronous motor manufacturing, asynchronous motor manufacturing, etc., including stator production lines, rotor production lines, and motor assembly lines. Induction motor manufacturing line includes, slot paper inserting machine , coil Winding and inserting Machine, lacing machine, Tying machine, Twist Tie Machine, forming machine, etc.

Coil winding machine Application

This stator coil winding machine is suitable for air conditioner motors, washing motors, compressor motors, fan motors, generator motors, and pump motors.

Coil winding machine Feature

This coil winding machine is automatic tripping, automatic trimming, and automatic indexing are completed in sequence. PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction. It can be used for 2, 4 and 6 pole motor stator coil winding.

Coil winding machine technical data

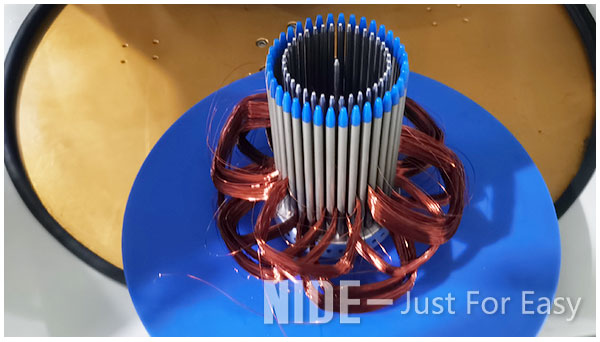

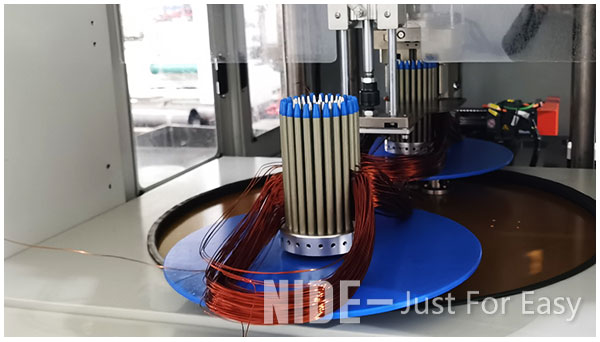

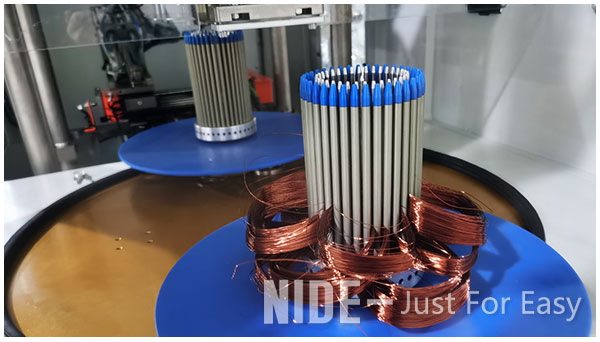

Coil winding machine picture

Coil winding machine video
