Wear Resistant Insulating Paper For Motor Insulation Winding
Model number:NDPJ-JYZ-6632
Introduction:We can produce different dimensions of insulation material for stator and armature slot.
- Specification
Product Description:

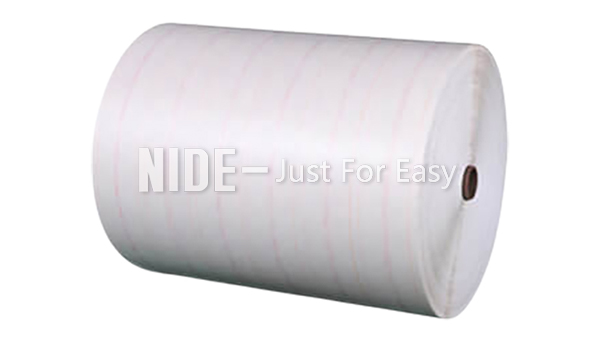

6632DM insulating paper is a four-layer soft composite material bonded by polyester film polyester fiber non-woven fabric.
6632DM insulating paper has good mechanical strength, dielectric properties and high heat resistance (Class B), it is a type of insulating material for motors, and can be used as slot insulation, inter-turn and inter-layer insulation, gaskets for small and medium-sized motors Insulation core and transformer insulation. Part of the thickness of this product has been widely sold to Europe, America and Southeast Asia markets.
We can produce different dimensions of insulation material as per customer's requirement.There are different insulation material, DMD B/F class, Red Polyester film,Class E, Red Vulcanized Fiber, Class A.
Features:
Super dielectric property.
Reliable heat resistance.
High mechanical strength.
Good impregnating performance.
PET Class E Specification
Item
Unit
Standard
Thickness
um
100
125
175
188
200
250
Tolerance
%
±3
±3
±3
±4
±4
±4
Tensile strength
vertical
Mpa
≥170
≥160
≥160
≥150
≥150
≥150
Horizontal
Mpa
≥170
≥160
≥160
≥150
≥150
≥150
Thermal shrinkage
vertical
%
≤1.5
Horizontal
%
≤0.6
Haze
%
≤2.0
≤2.6
≤3.5
≤4.0
≤4.6
≤6.0
Wetting tension
≥52 Dyn/cm
frequency electric strength
V/um
≥90
≥80
≥69
≥66
≥64
≥60
Thermal class
/
E
Volume resistivity
Ωm
≥1x1014
Density
g/cm³
1.4±0.010
Relative dielectric constant
2.9~3.4
Dielectric loss factor
≤3x10-3
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)
2. Insulation material dimension: width, thickness, tolerance.
3. Insulation material thermal class: Class F, Class E, Class B, Class H
4. Insulation material applications
5. Required quantity: normally its weight
6. Other technical requirement.
NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
