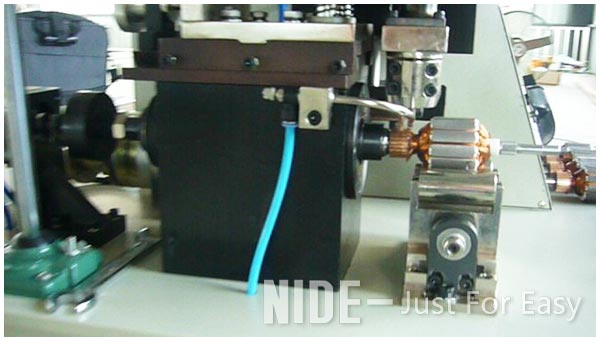

This rotor commutator welding machine is suitable for weld the commutator one slot by one slot. After pre-set the rotor specification, machine will do the welding once the start button is pressed.

(1) Machine function and characteristic

It is automatically indexing, automatically welding, user only need to load and unload the armature. Welding current can be adjusted according to different wire diameter. Easy operation and adjustment.

(2) Technical parameter:

• Armature diameter：15~100mm

• Commutator diameter；5~60mm

• Wire diameter：0.07~1.8mm

• Max power：25KVA

• Power supply voltage：220V±10%50Hz

• Air source pressure：0.5~0.7MP

(3) Application:

It is suitable for both hook and riser type commutator. It is suitable for home appliance, car and power tool motor armature.

The welding process

About Motor armature manufacturing

Motor armature / rotor manufacturing production assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
