China AC Motor Stator Coil Winding Inserting Machine for induction pump motor

About China AC Motor Stator Coil Winding Inserting Machine, NIDE have state-of-the-art equipment and Our products are exported  to more than 50 countries around the world. We can supply Different types of motor manufacturing solution and electric motor making machines, including stator production machines ,armature manufacturing machines, rotor making machines. Our motor manufacturing mechanical are widely recognized and trusted by users and can meet up with continuously changing economic and social needs

(1) Application:

This stator coil inserting machine is suitable for large and medium-sized AC motors, induction motors, such as water pump motor stators, submersible pump motor stators.

(2) Main Technical Parameter:

(3) Machine main function and characteristic

It adopts AC servo motor driving system, AC frequency conversion speed regulation system, pneumatic system.

With horizontal frame design, controlled by industrial programmable PLC. It is used for winding and wedge automatically inserting.

It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge feeding mode can be set according to different motor.

Equipped with human-machine control interface, it has the function of status display, malfunction alarm, various parameters setting etc.

It has the characteristic of widely application, high automation, easy operation and convenient tooling change.

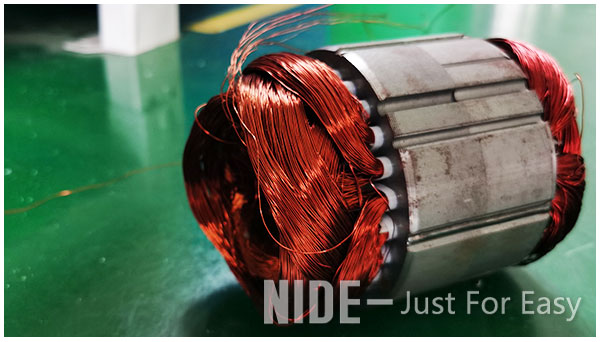

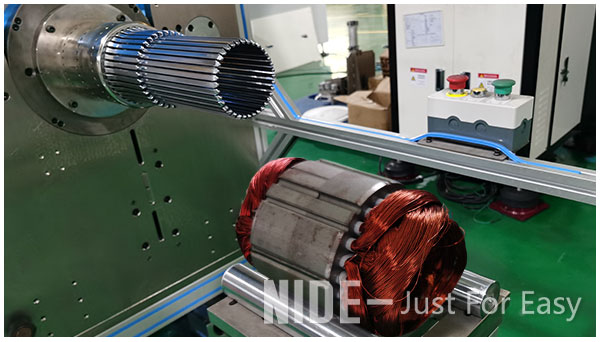

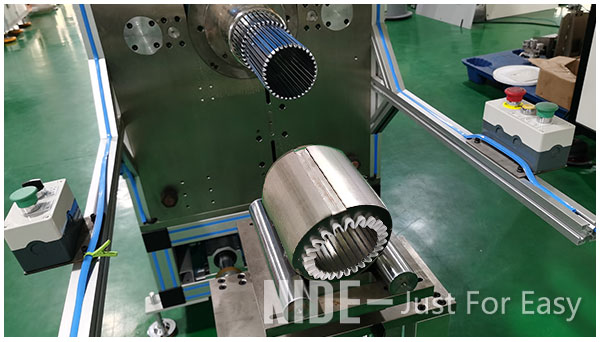

(4) Picture show

China AC Motor Stator Coil Winding Inserting Machine Video
