Generator motor stator coil winding and inserting machine
Model number:R3QL1-120-150C
Introduction:This full automatic generator motor stator coil winding and inserting machine adopts three-head winding stations and one-head coil inserting stations,It integrates the stator winding and embedding process, and the whole process is highly automated
- Specification
Full Automatic Generator motor stator coil winding and inserting machine
1. The main Features and Functions
The full automatic generator motor stator coil winding and inserting machine is a four-station automatic coil winding and coil inserting machine,integrates the stator winding and embedding process, and the whole process is highly automated.
The stator coil winding and insertion machine is mature in manufacturing process, advanced in technology, reliable in quality, and convenient to use and maintain.
Designed as three winding stations and one coil inserting station, which collects A-phase winding, phase-to-phase insulation ferrule, groove-making, B-phase winding, phase-to-phase insulation ferrule, C Phase winding wire weaving, phase-to-phase insulation ferrule on one machine.
The coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen.
During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.
With six stations wokring at the same time, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.
The data display and input adopt a touch monitor.
2. Technical parameters
Product name : Fully automatic generator motor stator coil making and insertion machine Stator OD : ≤φ150mm Stator ID : 40-80mm Stack Height : 30-80mm Appropriate Wire : φ0.2-φ1.2mm Winding stations : 3 Coil inserting stations : 1 Height of Coil : 2 Winding inserting mode : chained /same core Voltage : 380V 50/60Hz Power : 15Kw Dimension : (L)4050×(W)3000×(H)2500mm Weight : 4500Kg 3. Application
This motor stator coil winding and inserting machine is suitable for miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, and pump motors, etc.

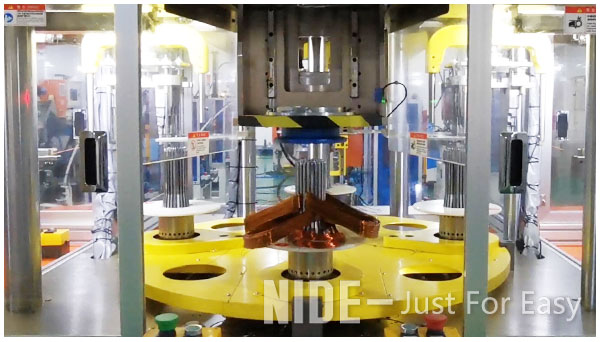

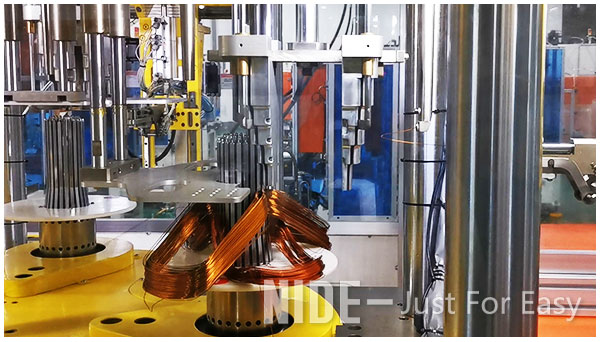

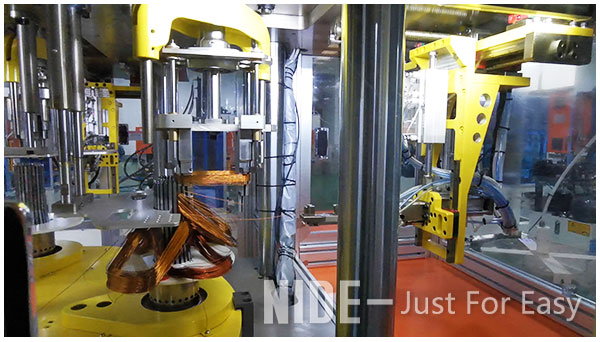

4. Picture show
The fully automatic electric motor stator coil winding and inserting machine video
About Motor stator manufacturing
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
