3-24 slots small motor armature winding machine motor coil winding equipment mechanical

1. The motor armature winding machine introduction and characteristics

For the motor manufacturing process , the armature winding machine overcomes the traditional winding process

and designs a unique winding structure, which effectively solves the big problem that

the slot full rate of the motor rotor is too high, and makes the motor armature coil winding are

more compact and the shape is more beautiful .

Therefore effectively improves the performance of the motor and reduces the the product defective rate.

In the operation control, this motor armature winding machine is more humanized,

and one worker can operate multiple machines at the same time,

 improving production efficiency and reducing labor costs.

The motor winding machine adopts man-machine interface, programmable controller online control,

and Chinese and English language operation pages, which are simple and easy to understand and easy to operate;

User-friendly data setting, interactive man-machine interface can store multiple sets of winding work data,

can be compatible with the data parameters of a variety of different products,

so that the replacement of the motor rotor winding mold is more concise and fast.

This motor armature winding machine has an automatic fault alarm function,

which can intuitively and quickly find out the cause of the fault, so as to solve the fault in the shortest time.

2.The motor armature winding machine application:

The motor armature rotor winding machine is used to manufacture small DC and AC motors ,

such as dishwashers, crushers, soya-bean milk makers, cooking machines, coffee makers,

juicers, juicers, vacuum cleaners, mites, sweeping robots. Hair ball trimmer, electric razor,

electric toothbrush, razor, hair clipper, cleansing instrument, egg beater, household purifier, etc.

3. The motor armature winding machine specification:

4. The motor armature winding machine picture show:

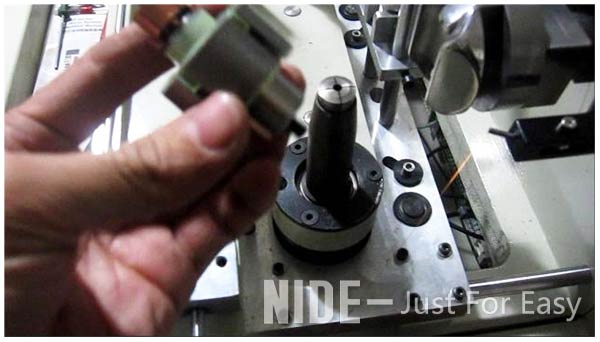

1. Motor armature winding machine winding spindle display

2. Motor armature winding machine winding process

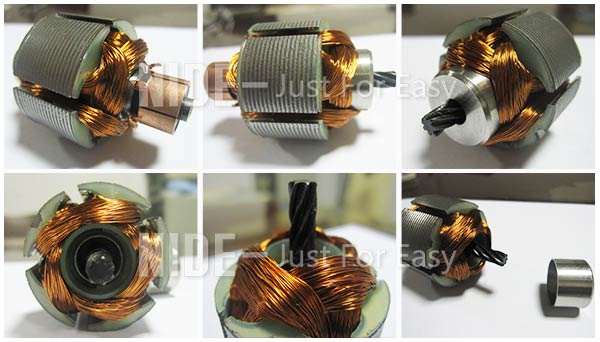

3. Motor armature display after coil winding

The small motor armature winding machine video   https://youtu.be/Foa1gttB638
