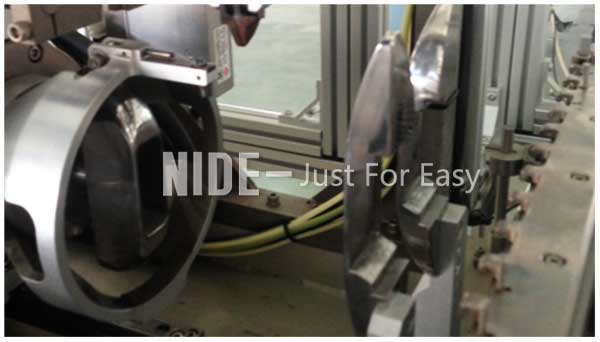

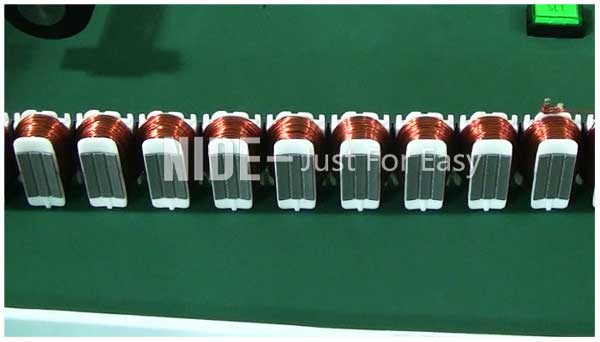

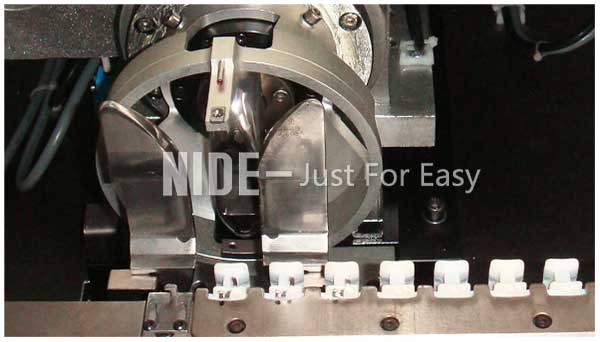

ND-SSW01 Full Automatic Linear Stator coil winding machine

      Introduction：

     The stator coil winding machine is suitable for Linear stator winding machine, servo motor control the winding. It has self-diagnosis function, the output can be stored inside the HMI. It can achieve auto winding, auto wire acrossing, auto tapping, auto wire arraying, the winding speed can be set on the HMI. It features easy operation and high efficiency.

The Linear coil winding machine has remote diagnosis function.

Specification:

Spindle No.：4 spindles

Winding speed：500-3000 R.P.M

Stator O.D.：60-260mm

Stator stack length：6-50mm

Wire dia.：0.5-1.3mm

Voltage：380V 50/60Hz

Dimension：1000*1300*1500mm

Weight：≈400kg

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
