(1) Machine main function and characteristic

This automatic stator coil winding machine has One winding head and two winding stations. It adopts servo system to rotate and index transfer form.

During the stator winding machine running, the coil winding data will be displayed in the touch screen. Meanwhile, the stator coil winding program can also be edited in the touch screen.

Allow two wires winding simultaneously.

Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

The working rotation speed can be set . Machine has no distinct vibration and noise.

Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.

PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

（2）Main technical data

Wire diameter：0.2-1.2mm

Flyer diameter：400mm

Max stator stack height：220mm

Max stator OD.：260mm

Transfer section NO.：1-6

Max winding speed：1500r/Min

Air pressure：0.4MPa

Voltage：380V 50*60hz

Power：4.5kw

Weight：about 1200kg

Dimension：(L)2200*(W)1200*(H)2200mm

(3) Application:

The elelctric motor stator coil winding machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

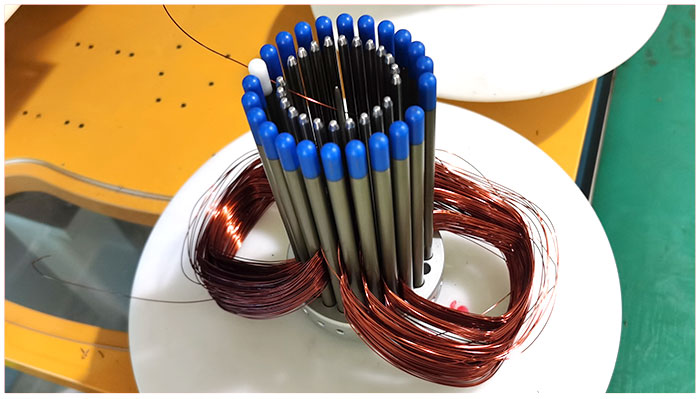

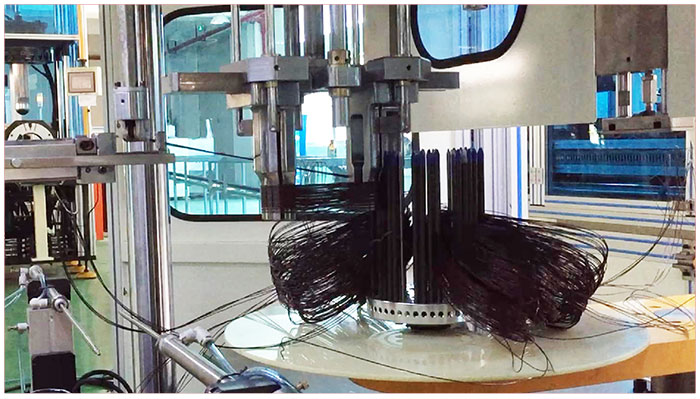

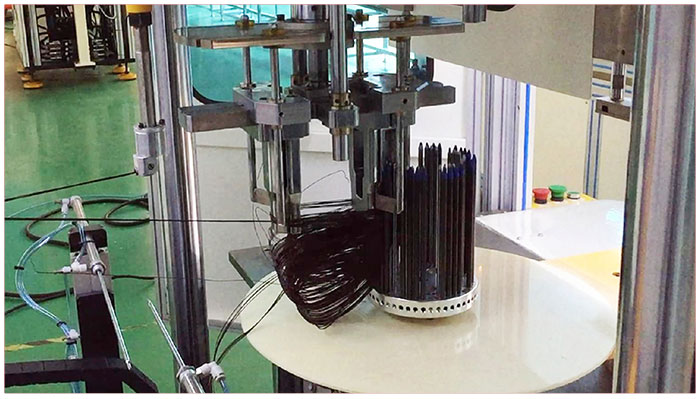

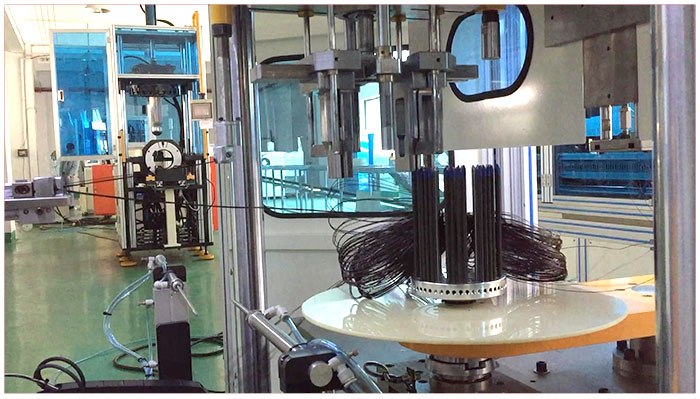

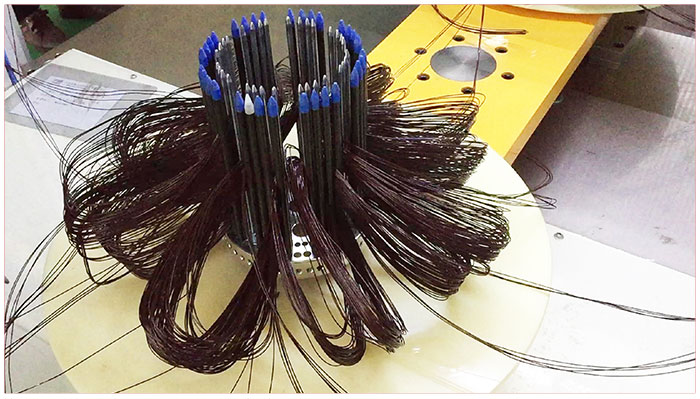

(4)The stator coil winding machine picture show

(5)The stator coil winding machine youtube video

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
