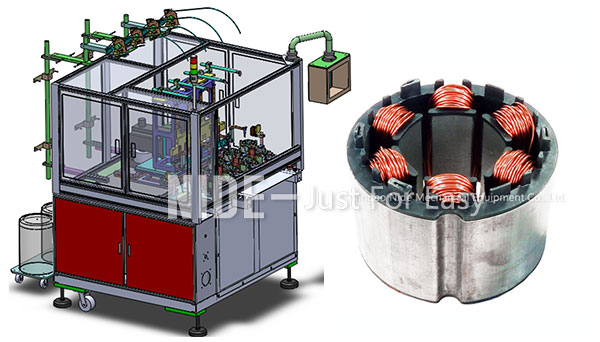

Full automatic Four working stations BLDC stator winding machine / needle  inslot coil winding machine

I.Description for the needle winding machine:

Four stations, suitable for brushless motor stator winding.

Turn No., wire clamping indexing angle, indexing,etc.can be set on HMI.

Machine has self-diagnostics function, fault and solution can be displayed on the HMI, convenient for maintenance and commissioning.

Machine has self-protection device

High quality winding tooling: ensure the tooling quality by control the material, heating treatment, processing accuracy,etc..

High strength aluminium alloy frame

High accuracy

Change-over time: 30mins

II.Machine specification:

ItemParameter

Prouduction name： four working stations BLDC brushless motor stator winding machine

Wire diameter：0.13mm～1.5mm

Max. winding speed：400-800r/min

Max.wire section number：5

Stack length：5mm～125mm

Stator ID：Φ10mm～Φ100mm

Stator OD：Φ30mm～Φ150mm

Pole Number：2、4、6、8

Air source：0.5MPa～0.8 MPa

Voltage：380V/50HZ, three phase four wires

Power：26KW

Machine dimension(LxWxH)：1690mm×1260mm×2020mm

Weight： ≈400Kg

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
