NIDE upgraded model three stations stator winding machine with 2 poles

1.   Main function and feature

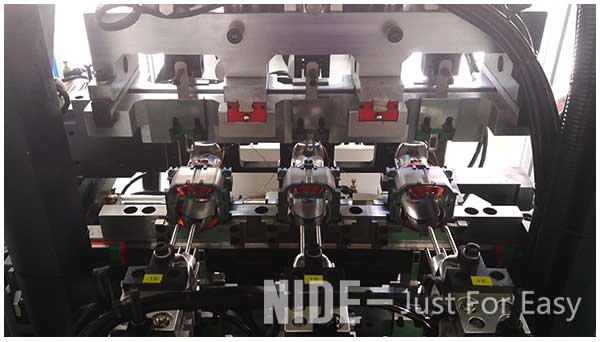

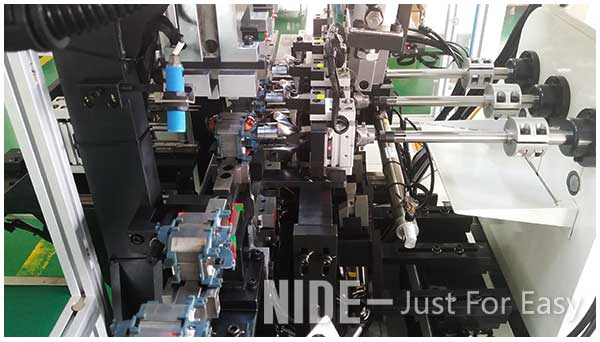

The automatic stator coil winding machine hasThree winding stations to winding the stator

The automatic stator winding machine Automatic feed, press stator tight, assemble fixture, wind, clamp and cut wire

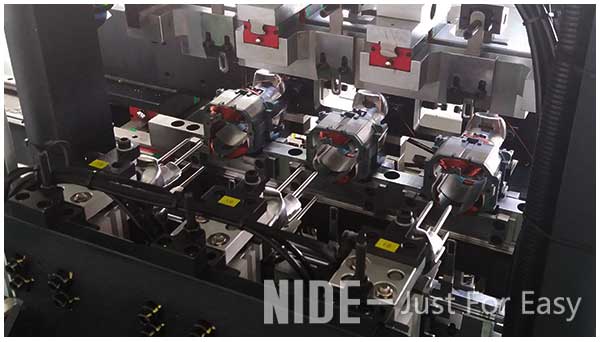

There 6pcs stator stations: left and right moving to load/unload, when three winding stations do winding,  the other three stations is ready for loading/unloading

Protective cover: adapts robust aluminium alloy section

Wire end length can be adjustable, it can have tapping function if required

Casted frame, stable accuracy, good vibration absoption.

High efficiency

2.Main technical parameter

Machine size:1600X1700X1830(LXWXH)(exclude wire holder)

                       2400X1700X1830 (LXWXH)(include wire holder)

Stator OD:50~90mm(can be customized)

Stack length:20~60mm(can be customized)

Stator ID:30~50mm(can be customized)

Rated efficiency:if wind  0.32mm/300turns,52~55sec/3pcs

Travelling distance:135-190mm adjustable(standard model)

                                 150-220mm(lengthen model)

Speed:0-550rpm adjustable

Wire diameter:copper wire 0.25- 0.9mm(can be customized)

Pole:2poles

Motor power:4KW

Voltage:three phase 380V

Air pressure:0.4~0.7MPa

Machine weight:about 1.5T

One people operate one machine,manually load/unload

Change-over:30mins

3.Standard electric configuration

There is protection cover for the moving unit

There is safety alarm indicator for necessory position

There is emergency button, once it’s pressed down, the machine will be powered off

There is safety switch for each safety door, the safety door can’t be opened in auto mode

4.Machine color

Alarm indicator: yellow

Main color: RAL 9003

Safety door: organic transparent glass

Aluminium profile has blue inlaid strip

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
