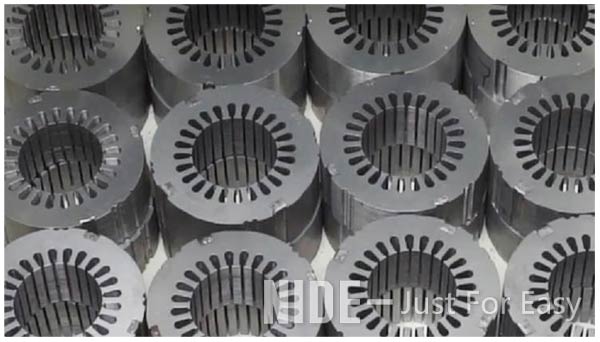

This high speed punching machine is suitable winding die-stamped strip of sheet iron. This stator lamination core high speed punching machine is made up of frame, punching tooling, transmission mechanism and electric control system. Machine frame is made up of aluminum profiles with solid steel supporting plate, on which main machine units are disposed. With a punch needle structure, the  tooling will drive the rotation mechanism. During running, the pinch roller will form the outside dimension. Machine is of high efficiency and it is easy to control the dimension. The punching tooling is under several processing treatment to ensure its duration and accuracy.

During operation, manually load the material into the slinky tooling. Then set the related parameter and press start button. Machine will do all the process. After that, manually unload the material.

Main data

Power source：           AC220V/50Hz

Control power：          DC24V/100W

Servo motor：            AC220V/1.5KW

Slinky speed：           0-200rpm/min

Air source:              0.6Mpa~0.8Mpa

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
