This type of automatic coil winding machine has two winding stations. During the stator winding machine running, the coil winding data will be displayed in the touch screen. Meanwhile, the stator coil winding program can also be edited in the touch screen.

(1) Machine main function and characteristic

• Winding tooling: each machine has one set winding tooling and three vertical winding forms.

• The whole set of tooling can be changed, and it takes about 15min.

• The turntable is two stations structure. It adopts servo system to rotate and index transfer form.

• Allow three wires winding simultaneously.

• Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

• The working rotation speed can be set . Machine has no distinct vibration and noise.

• Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.

• PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

• X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

• Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

(2) Main technical data

• Winding head: 1pc

• Wire diameter: 0.2~1.2mm

• Winding speed: ≤2500RPM

• Max stack OD: 160mm

• Max stack height: 100mm

• Fly fork diameter: 300mm

• Transfer number: 1~5 section

• Power supply: 380V/50/60HZ  7KW

• Weight: about 1000kg

• Dimension: L2400*W1000*2450mm

(3) Application:

This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

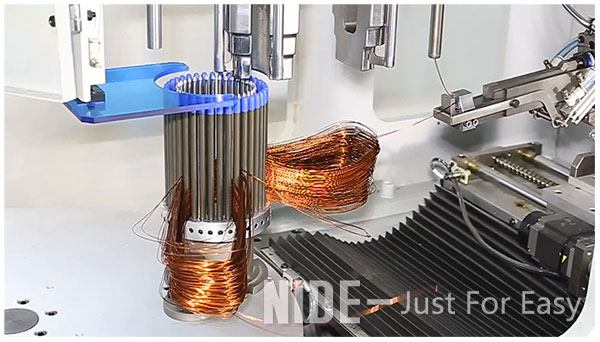

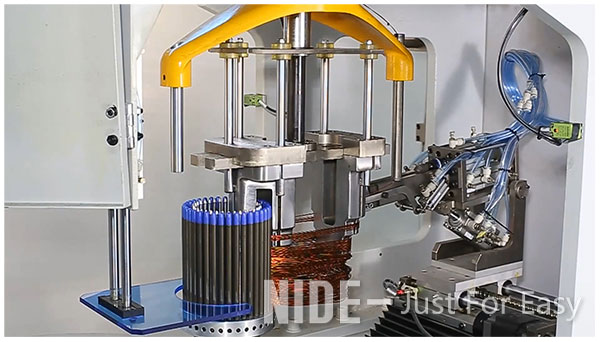

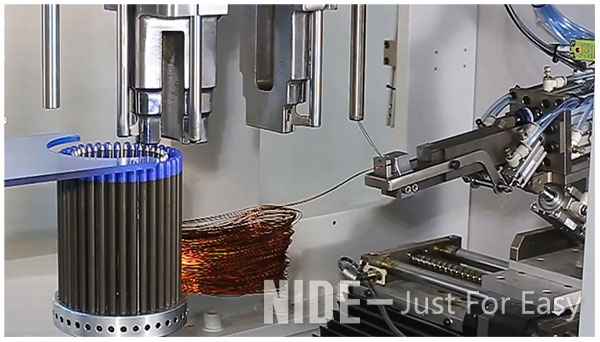

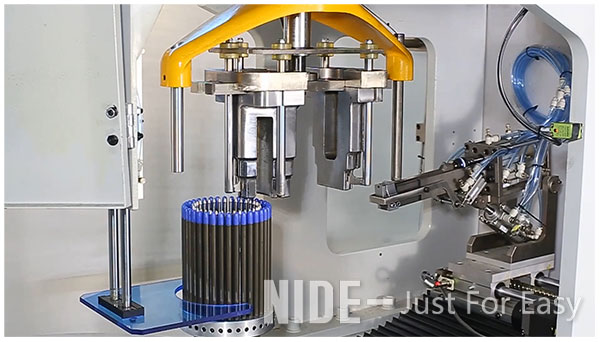

(4) Picture show:

(5)The Automatic 2 Poles Stator Coil Winding Machine youtube video

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
