Nide team could manufacture insulation material as per customer’s drawing and samples. If customer only has samples, we could also design drawing for our customer. We also provide customized service.

Nide pays high attention on production detail and process to guarantee the insulation material quality.

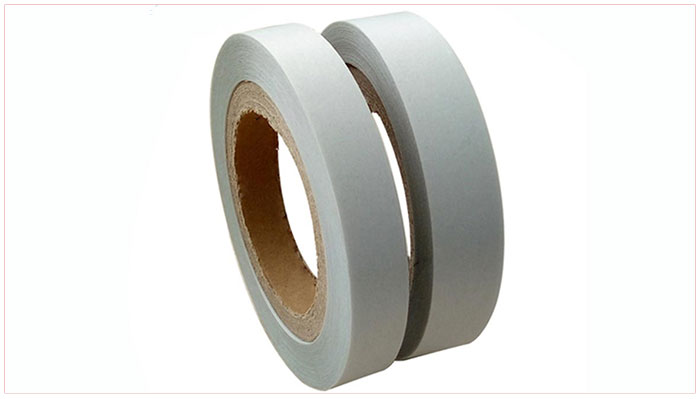

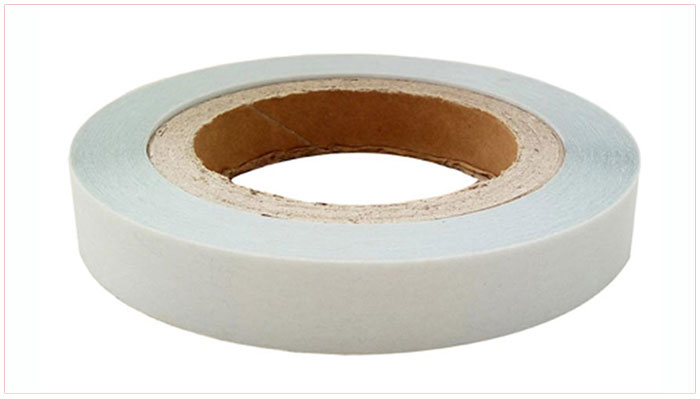

DMD is made of two layers of polyester fiber paper with one of polyester film. It is a three-layer combined material. It shows excellent mechanical and electrical properties and good heat resistance.

Technical requirement

Surface should be bright and clean, no small holes, delaminating, mechanical impurity or damage. Drape or bubble is permitted under the allowable thickness tolerances. After opening, the surface should not stick.

Thickness: 0.15~0.4mm

Width: 5mm~1000mm

Thermal class: Class B

Color: White

Application: it is widely used in slot, phase and liner insulating of motor, transformer and so on.

NIDE can supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
