(1) Machine function and characteristic

This ceiling fan coil winding machine has two working stations. Controlled by micro computer, it can do  auto winding, auto array, auto indexing; array and indexing are controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurated up to 0.1 round.

(2)Technical Parameter:

Wire diameter： 0.05~0.45mm
Stator O.D：100~163mm
Slot number；Less than 24 slots
Stack height： 6~30mm
RPM：Max 2500RPM
Voltage： 3800V/50Hz, or customize
Power：AC 15KW
Weight：4000Kg
Dimension：4050mm*3000mm*2500mm

(3) Application:

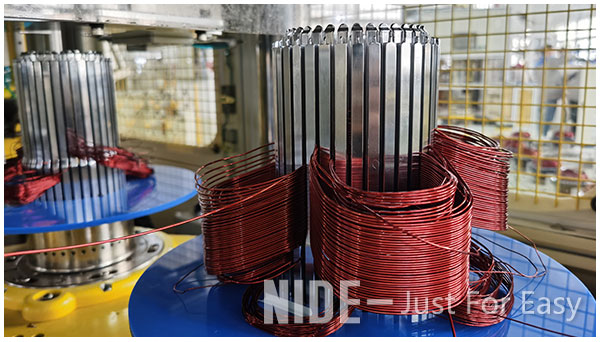

The table Fan Coil Winding Machine is suitable for winding fan stator, such as frequency conversion alternator and generator armature.

The Table Fan Coil Winding Machine working video

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
