This machine realizes the coil winding and coil insertion process into one machine.It has four working station, two for coil winding ,the other two for coil insertion.

(1)  Machine mainfunction and characteristic

This machine is can do coil winding, coil inserting and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.  This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen.

With serval station working simultaneously, this machine is efficiency and saves labor cost.

(2) Main technical data

Stator OD：≤φ150mm

Stator ID：≤φ110mm

Stack Height：30-120mm

Height of Coil：3

Appropriate Wire：φ0.18-φ1.2mm

Winding inserting mode：chained   /same core

Pitch time：≤40s/pc

Air Pressure：0.6-0.8MPa

Power supply：380V   50/60Hz 15Kw

Weight ≈4000Kg

Dimension：(L)2000×(W)1300×(H)2300mm

(3) Application

It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

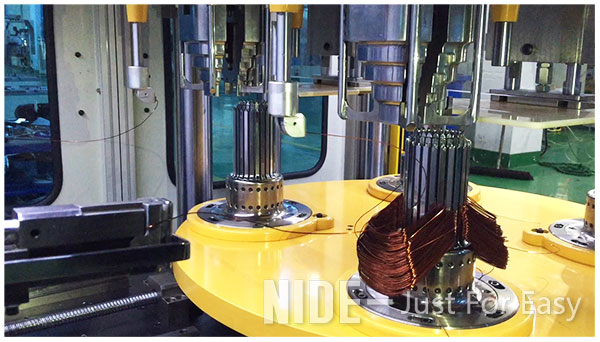

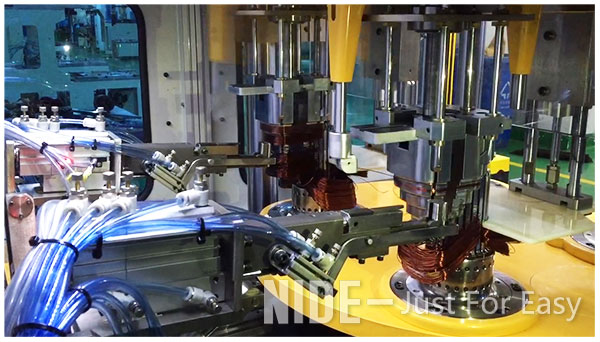

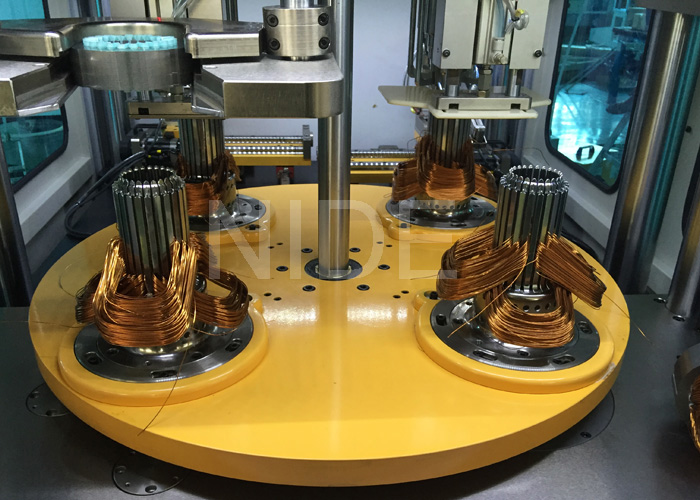

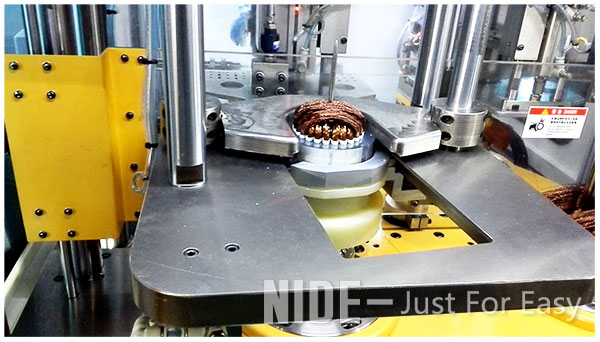

the four working station of this stator winding and coil inserting machine

Automatic Stator Winding And Coil Inserting Machine working video

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
