This coil winding machine is equipped with 4 working station so as it can achieve high efficiency requirement.

(1) Machine main function and characteristic

This machine has two winding heads with four working station. The main phase and auxiliary phase can be wound simultaneously. It is suitbale for high production capacity, high slot filling rate, small slot opening stator coil winding. Different winding mode can be selected in the touch screen, like auto skip, auto cutting and auto indexing. Other parameter also can be set in the touch screen, like continuous/discontinuour winding method.

(2) Main technical data

Winding head: 2pc

Wire diameter: 0.18~1.2mm

Winding speed: ≤2500RPM

Max stack OD: 200mm

Max stack height: 150mm

Fly fork diameter: 400mm

Transfer number: 1~5 section

Power supply: 380V/50/60HZ  7.5KW

Weight: about 2000kg

Dimension: L1900*W1100*2100mm

(3) Application:

This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

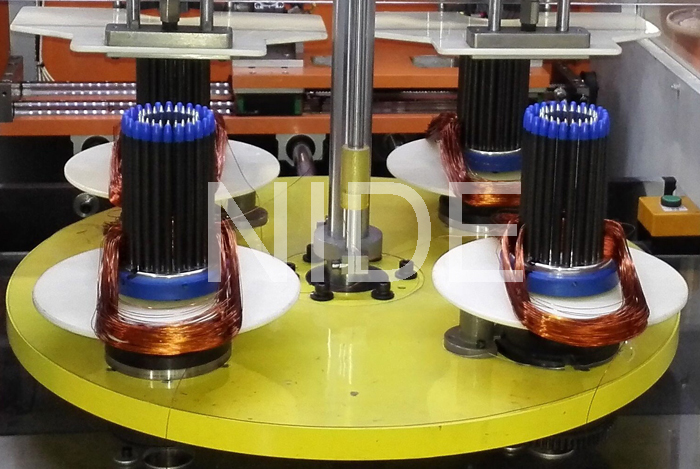

(4)The four working station of this coil winding machine picture and video

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
