Wholesale 36p Segment Hook Commutator for Drum Washing Machine Motor Spare Part

1.Commutator Introduction

The segmented commutator is suitable for drum washing machine motor.

Each segment or bar on the commutator conveys current to a particular coil. To enhance efficiency, the contact surfaces are made from a conductive material, usually copper. The bars are also separated from each other using a non-conductive material such as mica. This helps prevent shorting.

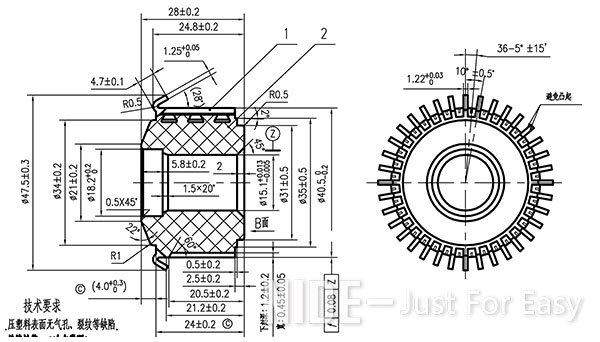

2. Commutator Parameter (Specification)

3. Commutator Application

The commutators are widely applied to automotive industry, power tools, automobile motor, household appliances, and other motors.

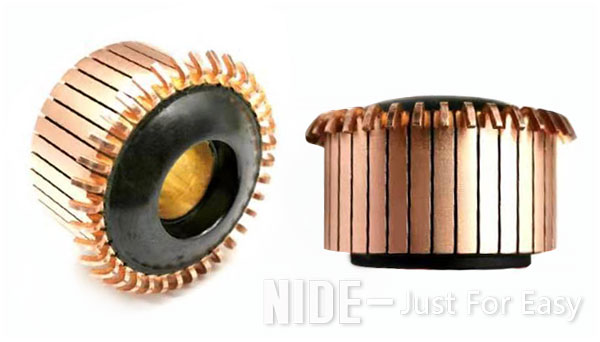

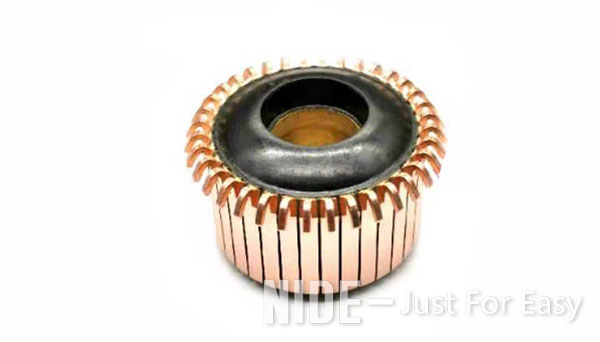

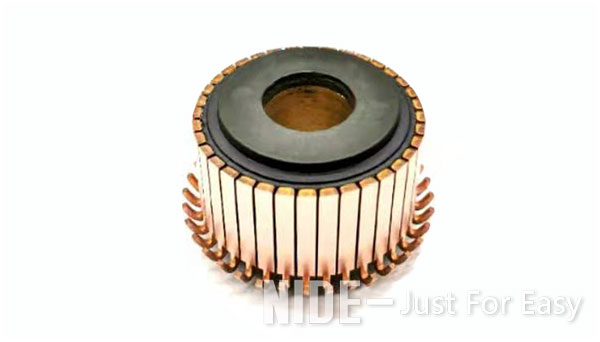

4. Commutator Picture

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
