24 slot motor accessories commutator power tool hook type commutator

NIDE develops and produces various commutators and collectors, and we can customize commutators according to customer needs.

Commutator application

Commutators are widely used in various electric tools, automobiles, motorcycles, household appliances and other motors.

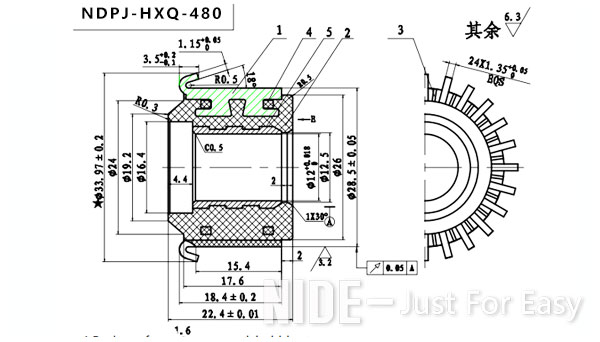

Commutator parameters

Commutator Features

1.Resin surface no crack,bubble,etc

2.Dielectric strength: bar-bar 500VAC, 1s,bar-shaft 4800VAC,1MIN,no break down or

flash

3.Spin test: 180°,33000rpm,3min, OD deviation 0.01max,bar-shaft deviation 0.005max

4.Insulation resistance: room temperature, 500VDC mega meter, insulation resistance >

100MΩ

5.Unmarked tolerance accord with GB/T1804-m

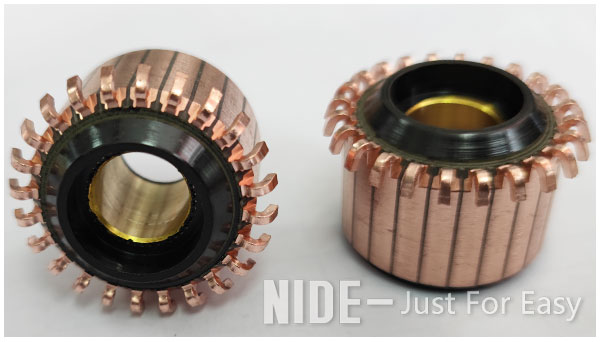

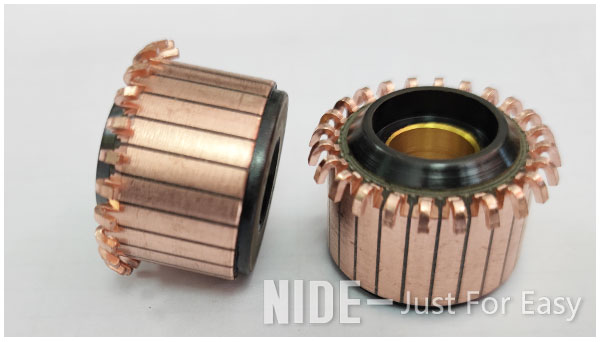

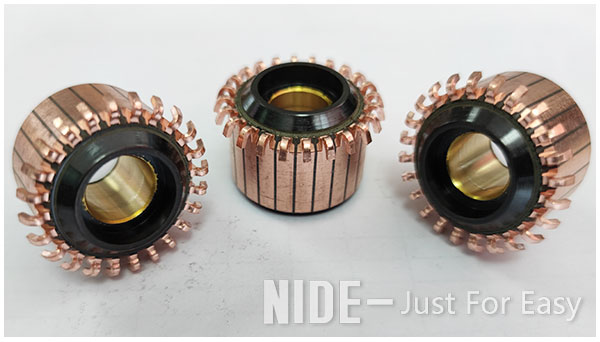

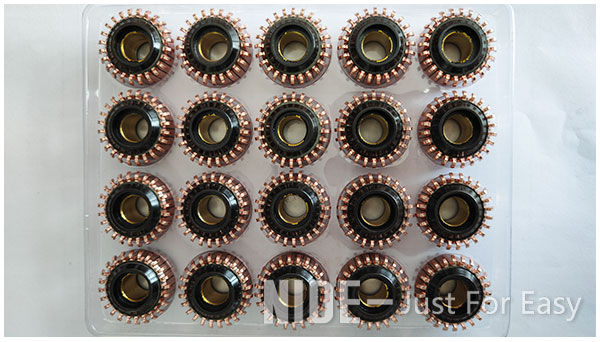

Commutator Picture

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
