Industrial Water Pump Motor Stator Paper Inserting Machine
Model number:CZDW2-250-300B
Introduction:This slot paper inserting machine is suitable for large and medium-sized stators, especially stators of generator motors, deep water pumps and three-phase motors
- Specification
Industrial pump motor stator slot paper inserting machine
This stator slot paper inserting machine is suitable for large and medium-sized stators, especially stators of generator motors, deep water pumps and three-phase motors.
Play an insulating role, the insulating paper inserting process before the stator winding, improve the service life of the motor stator.
This stator insulation paper inserting machine is widely applied for stator which need to do paper inserting process. Machine is equipped with touch screen. All the parameter can be set in the touch screen.
(1) Machine main function and characteristic
Inserting insulation paper automatically from bottom of stator slot
Automatic paper feeding,
edge folding and forming
slot number change is controlled by electric;
interval slot inserting and skip slot inserting could be at option;
it is convenient and easy for different slot number stator production and changing tooling.
(2) Main Technical Parameter:

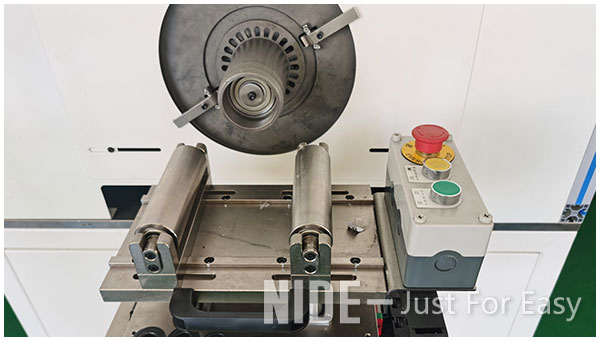

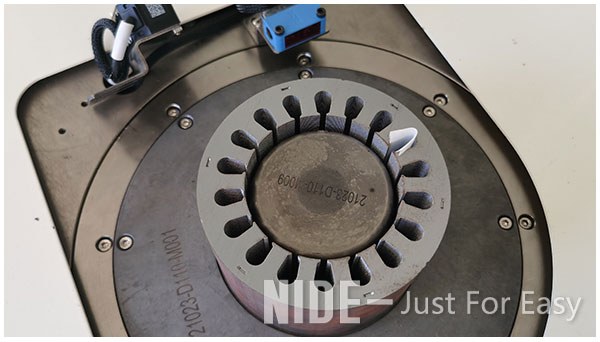

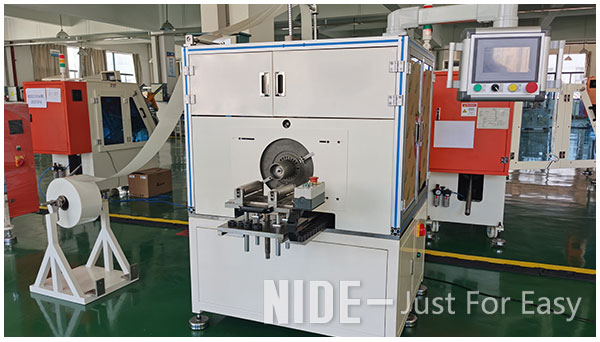

Product name: Industrial pump motor stator slot paper inserting machine Stator height: 40-200mm Stator ID： φ70-φ150 Stator OD: ≤210mm Height of edge folded: 2-4mm/4-7mm insulation paper's thickness: 0.188~0.35mm Tack time: 1.2 S/slot Power: 380V 50/60HZ 3.5KW Weight: 500KG Dimension: 1100*900*1500mm (3)Slot paper inserting mahcine picture
