Stator Slot Insulation Paper Forming & Inserting Machine
Model number:ND-SSI01E
Introduction:The slot insulation paper inserting machine are full of cutting-edge technologies and innovations that make industrial processes easy to execute.
- Specification
Automatic Motor Stator Slot Insulation Paper Cutting and Inserting Machine
This paper inserting machine is specially designed for BLDC inner stator slot insulation paper insertion of medium and small size stator. The slot insulation paper inserting machine are full of cutting-edge technologies and innovations that make industrial processes easy to execute.All procedure are done by the machine automatically except to put on and take off stator. It can do the paper feeding, forming, inserting and cutting automatically. The folding width is adjustable.The parameter can be set on HMI, low noise, high speed and high automation and easy operation. It has remote diagnosis function.
Specification
Product name: Automatic Motor Stator Slot Insulation Paper Inserter Insulation paper width: 10mm ~ 55mm(can becustomized if special) Insulation paper thickness: 0.188mm ~ 0.3mm Stator I.D: 50~ 150mm(can be customized if special) Stack height: 20mm ~ 60mm Slot No.: Even(more than 8 slots) Cycle time: 11sec/pc Notching dimension: 0-3x45 Air pressure: 0.4~0.8MPa Power supply: 220V/380V AC 50/60Hz Power: 7KW Dimension: 1600mm X 700mmX 1780mm Weight: 600Kg Application
The paper insertion machine is suitable for BLDC / brushless motor stator, servo motor and stepping motor stator insulation paper inserting.

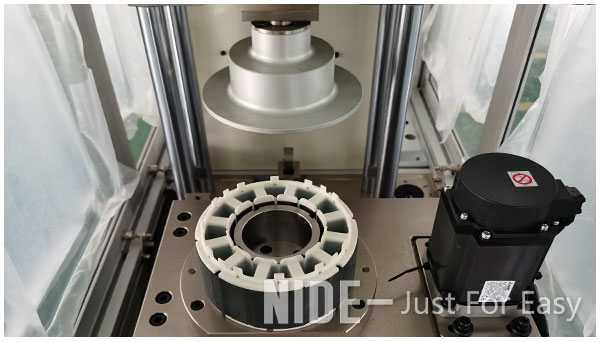

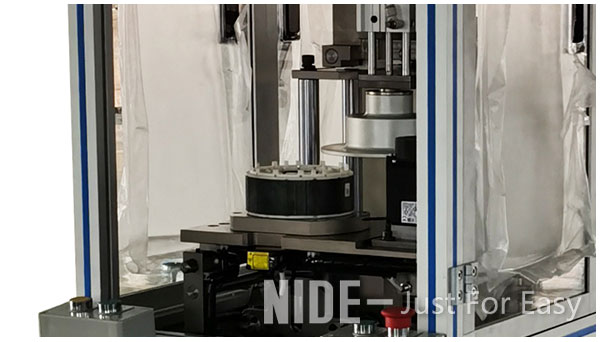

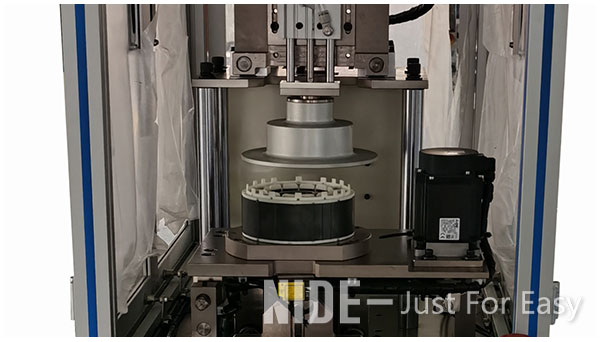

Picture show
