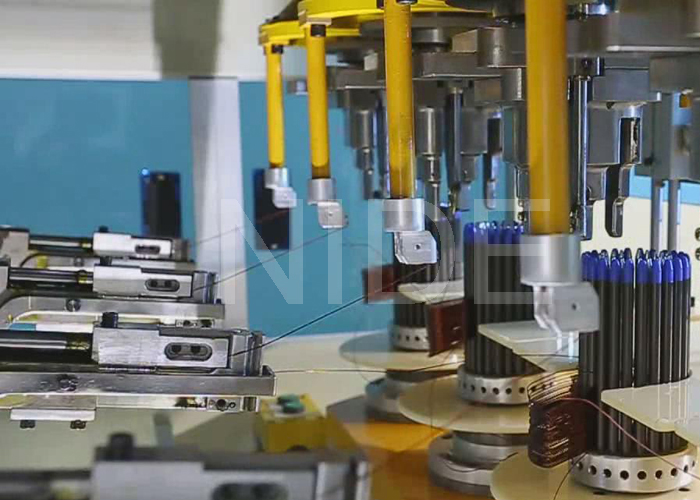

The induction motor stator coil winding machine is equipped with 4 working station and 2 winding heads. Machine is suitable for stators with high slot filling rate, small slot opening or high production capacity requirement. During machine running, after start button is pressed, this coil winding machine will automatically put the coil into the transfer former orderly.

(1)Technical data

Wire diameter: 0.19-1.2mm

Swing diameter: 400mm

Operation station: 4

Winding head: 2

Max Thickness of stator lamination:120mm

Max Stator OD: 150mm

Max RPM: 2500rpm

Air source: ≥0.5MPa

Power supply: 380V- 50/60HZ

Weight：about 5000kg

Dimension：L2100*W1350*2200mm

(2) Application

This machine is suitable for 2 poles. 4 poles, 6 poles coils winding.

(3) Operator step

1.Power on the machine

2.Thread wire this this motor

3. Set the winding parameter in the touch screen

4. Press the "start" button

5. Machine will do winding process automatically

6.After finishing the winding, machine will stop

7.Take out the wire from the tooling.

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
