(1)  Application

The stator slot insulation paper inserting machine is suitable for balance Scooter motor , balance Electric Vehicle motor , balance car motor. The paper inserter is equipped with touch screen , and the paper length and paper feeding time can be set in the touch screen.

(2)  Machine function and characteristic:

The balance car motor stator insulation paper inserting machine adopts servo working system which dramatically improve the paper inserting efficiency. The parameter of stator slots number, feeding speed, indexing speed and indexing direction can be set in the HMI.

One-time pass rate at 99%,rework pass rate at 100%.

(3) Technical parameter:

Stator OD：80~200mm

Stack length range:18~35mm

Insulation paper thickness:0.188~0.35mm

Power supply:220V 50/60HZ  1.0KW

working station：one

Weight: 350KG

Dimension: 500x550x1500mm

(4) Picture display :

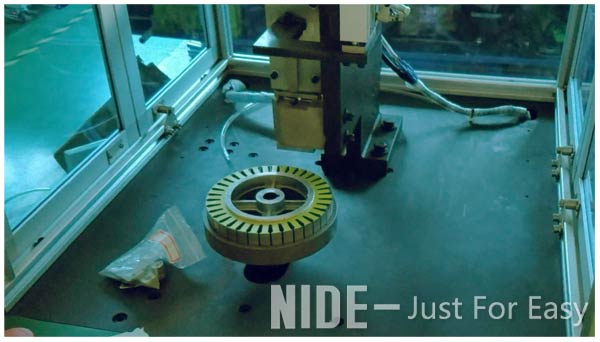

The Balance car motor stator insulation paper inserting machine

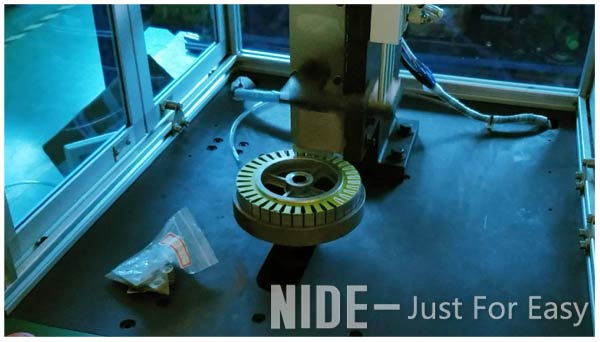

The Balance scooter motor stator insulation paper inserting machine

The Balance car motora stator insulation paper inserting process youtube video

Besides paper inserting machine, we also supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

About Motor stator manufacturing

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

About NIDE

Nide is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.We can supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.We also provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machine's application

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
